Meter Type | Single Phase |
Supply Current | 5.5mA |
Package | 24-Lead SSOP |
Active Energy Accuracy | 0.1% over 500:1 @25°C |
Active Energy Bandwidth | 14kHz |
Analog input range | +/-62.5mV to +/-1V peak |
Power Consumption | 15mW Typical |
Reference Tempco | 30ppm/°C Typical |

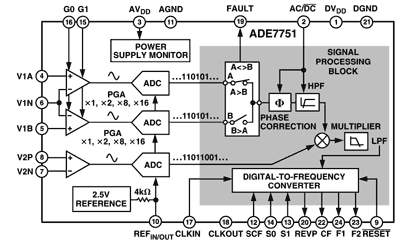

The ADE7751 is designed as one kind of high-accuracy, fault-tolerant electrical energy measurement IC that incorporates a novel fault detection scheme and supplies average real power information on the low-frequency outputs F1 and F2. Also this device is available in 24-lead DIP and SSOP packages.
Features of the ADE7751 are:(1)High Accuracy, Surpasses 50 Hz/60 Hz IEC 687/1036; (2)Less than 0.1% Error over a Dynamic Range of 500 to 1; (3)Supplies Average Real Power on the Frequency Outputs F1 and F2; (4)high-frequency output CF is intended for calibration and supplies instantaneous real power; (5)continuous monitoring of the phase and neutral: ncurrent allows fault detection in 2-wire and distribution systems; (6)ADE7751 uses the larger of the two currents (phase or neutral) to bill-even during a fault condition; (7)two logic outputs (FAULT and REVP) can be used to indicate a potential miswiring or fault condition; (8)direct drive for electromechanical counters and 2-phase stepper motors (F1 and F2); (9)a PGA in the current channel allows the use of small values of shunt and burden resistance; (10)proprietary ADCs and DSP provide high accuracy over large variations in environmental conditions and time; (11)on-chip power supply monitoring; (12)on-chip creep protection (no load threshold); (13)on-chip reference 2.5 V +/- 8% (30 ppm/ typical) with external overdrive capability; (14)single 5 V supply, low power (15 mW typical); (15)low-cost CMOS process.
The absolute maximum ratings of the ADE7751 can be summarized as:(1)AVDD to AGND: -0.3 V to +7 V;(2)DVDD to DGND: -0.3 V to +7 V;(3)DVDD to AVDD: -0.3 V to +0.3 V;(4)Analog Input Voltage to AGND V1A, V1B, V1N, V2P, and V2N: 6 V to +6 V;(5)Reference Input Voltage to AGND:0.3 V to AVDD + 0.3 V;(6)Digital Input Voltage to DGND: 0.3 V to DVDD + 0.3 V;(7)Digital Output Voltage to DGND: 0.3 V to DVDD + 0.3 V;(8)Operating Temperature Range Industrial:40°C to +85°C;(9)Storage Temperature Range: 65°C to +150°C;(10)Junction Temperature: 150°C. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
