Part Number: ADE7755



MFG: ADI

Package Cooled: SOP

D/C: 09

Description: The ADE7755 is an accurate electrical energy measurement IC intended for use in single-phase distribution systems. It provides instantaneo...


Urgent Purchase

ADE7755 General Description


The ADE7755 is an accurate electrical energy measurement IC intended for use in single-phase distribution systems. It provides instantaneous and average real power based on line current and voltage.

ADE7755 Maximum Ratings

Meter Type Single Phase
Supply Current 5.5mA
Package 24-Lead PDIP,24-Lead SSOP
Active Energy Accuracy 0.1% over 500:1 @25°C
Active Energy Bandwidth 14kHz
Analog input range +/-62.5mV to +/-1V peak
Power Consumption 15mW Typical
Reference Tempco 30ppm/°C Typical

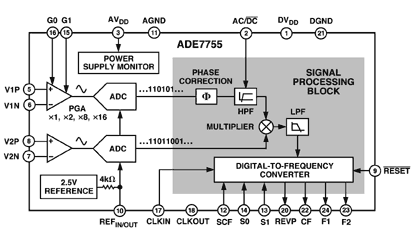

ADE7755 Connection Diagram
