Purchase ADE7763, In-stock ADE7763 From SeekIC.
MFG:ADI D/C:09
Part Number: ADE7763
MFG: ADI
D/C: 09
Description: The ADE7763 features proprietary ADCs and fixed functionDSP for high accuracy over large variations in envi...
- Table of contents:
ADE7763
-
Suppliers
DataSheet
General Description
ADE7763 General Description

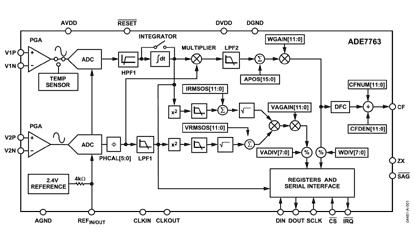

The ADE7763 features proprietary ADCs and fixed function DSP for high accuracy over large variations in environmental conditions and time. The ADE7763 incorporates two second-order, 16-bit -∆ ADCs, a digital integrator (on Ch1), reference circuitry, a temperature sensor, and all the signal processing required to perform active and apparent energy measurements, line-voltage period measurements, and rms calculation on the voltage and currentchannels. The selectable on-chip digital integrator provides direct interface to di/dt current sensors such as Rogowski coils, eliminating the need for an external analog integrator and resulting in excellent long-term stability and precise phase matching between the current and the voltage channels.
The ADE7763 provides a serial interface to read data and a pulse output frequency (CF) that is proportional to the active power. Various system calibration features such as channel offset correction, phase calibration, and power calibration ensure high accuracy. The part also detects short duration, low or high voltage variations. The positive-only accumulation mode gives the option to accumulate energy only when positive power is detected. An internal no-load threshold ensures that the part does not exhibit any creep when there is no load. The zero-crossing output (ZX) produces a pulse that is synchronized to the zero-crossing point of the line voltage. This signal is used internally in the line cycle active and apparent energy accumulation modes, which enables
faster calibration.
ADE7763 Maximum Ratings
AVDD to AGND 0.3 V to +7 V
DVDD to DGND 0.3 V to +7 V
DVDD to AVDD 0.3 V to +0.3 V
Analog Input Voltage to AGND 6 V to +6 V
V1P, V1N, V2P, and V2N
Reference Input Voltage to AGND 0.3 V to AVDD + 0.3 V
Digital Input Voltage to DGND 0.3 V to DVDD + 0.3 V
Digital Output Voltage to DGND 0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial 40°C to +85°C
Storage Temperature Range 65°C to +150°C
Junction Temperature 150°C
20-Lead SSOP, Power Dissipation 450 mW
JA Thermal Impedance 112°C/W
Lead Temperature, Soldering
Vapor Phase (60 s) 215°C
Infrared (15 s) 220°C
DVDD to DGND 0.3 V to +7 V
DVDD to AVDD 0.3 V to +0.3 V
Analog Input Voltage to AGND 6 V to +6 V
V1P, V1N, V2P, and V2N
Reference Input Voltage to AGND 0.3 V to AVDD + 0.3 V
Digital Input Voltage to DGND 0.3 V to DVDD + 0.3 V
Digital Output Voltage to DGND 0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial 40°C to +85°C
Storage Temperature Range 65°C to +150°C
Junction Temperature 150°C
20-Lead SSOP, Power Dissipation 450 mW
JA Thermal Impedance 112°C/W
Lead Temperature, Soldering
Vapor Phase (60 s) 215°C
Infrared (15 s) 220°C
ADE7763 Features
High accuracy; supports IEC 61036/60687, IEC62053-21, and IEC62053-22
On-chip digital integrator enables direct interface-to-current sensors with di/dt output
A PGA in the current channel allows direct interface to shunts and current transformers
Active and apparent energy, sampled waveform, and current and voltage rms
Less than 0.1% error in active energy measurement over a dynamic range of 1000 to 1 at 25°C
Positive-only energy accumulation mode available
On-chip user programmable threshold for line voltage surge and SAG and PSU supervisory
Digital calibration for power, phase, and input offset
On-chip temperature sensor (±3°C typical)
SPI®-compatible serial interface
On-chip digital integrator enables direct interface-to-current sensors with di/dt output
A PGA in the current channel allows direct interface to shunts and current transformers
Active and apparent energy, sampled waveform, and current and voltage rms
Less than 0.1% error in active energy measurement over a dynamic range of 1000 to 1 at 25°C
Positive-only energy accumulation mode available
On-chip user programmable threshold for line voltage surge and SAG and PSU supervisory
Digital calibration for power, phase, and input offset
On-chip temperature sensor (±3°C typical)
SPI®-compatible serial interface

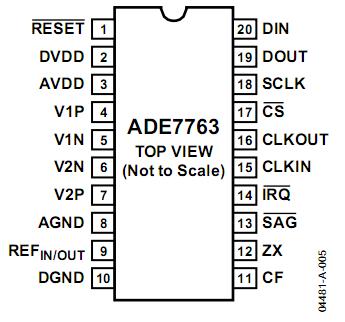

ADE7763 Connection Diagram
ADE7763
PDF/DataSheet Download
- Datasheet: ADE7763
- File Size: 1359919 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
