Purchase ADG2108, In-stock ADG2108 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG2108
MFG: ADI
D/C: 09
Description: The ADG2108 is an analog cross point switch with an array size of 8 × 10. The switch array is arranged...
- Table of contents:
ADG2108
-
Suppliers
DataSheet
General Description
ADG2108 General Description
The ADG2108 is an analog cross point switch with an array size of 8 × 10. The switch array is arranged so that there are eight columns by 10 rows, for a total of 80 switch channels. The array is bidirectional, and the rows and columns can be configured as either inputs or outputs. Each of the 80 switches can be addressed and configured through the I2Ccompatible interface. Standard, full speed, and high speed (3.4 MHz) I2C interfaces are supported. Any simultaneous switch combination is allowed. An additional feature of the ADG2108 is that switches can be updated simultaneously, using the LDSW command. In addition, aRESET option allows all of the switch channels to be reset/off. At power on, all switches are in the off condition. The device is packaged in a 32-lead, 5 mm × 5 mm LFCSP_VQ.
ADG2108 Maximum Ratings
TA = 25°C, unless otherwise noted. Table 4.
|
Parameter |
Rating |
|
VDD to VSS VDD to GND VSS to GND VL to GND Analog Inputs Digital Inputs Continuous Current 10 V on Input; Single Input Connected to Single Output 1 V on Input; Single Input Connected to Single Output 10 V on Input; Eight Inputs Connected to Eight Outputs Operating Temperature Range Industrial (B Version) Automotive (Y Version) Storage Temperature Range Junction Temperature 32-Lead LFCSP_VQ JA Thermal Impedance Reflow Soldering (Pb Free) Peak Temperature Time at Peak Temperature |
15 V −0.3 V to +15 V +0.3 V to −7 V −0.3 V to +7 V VSS − 0.3 V to VDD + 0.3 V −0.3 V to VL + 0.3 V or 30 mA, whichever occurs first 65 mA 90 mA 25 mA 40°C to +85°C 40°C to +125°C 65°C to +150°C 150°C 108.2°C/W 260°C (+0/5) 10 sec to 40 sec |
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ADG2108 Features
I2C-compatible interface
3.4 MHz high speed I2C option
32-lead LFCSP_VQ (5 mm * 5 mm)
Double-buffered input logic Simultaneous update of multiple switches
Up to 300 MHz bandwidth
Fully specified at dual ±5 V/single +12 V operation
On resistance 35 maximum
Low quiescent current < 20 A
3.4 MHz high speed I2C option
32-lead LFCSP_VQ (5 mm * 5 mm)
Double-buffered input logic Simultaneous update of multiple switches
Up to 300 MHz bandwidth
Fully specified at dual ±5 V/single +12 V operation
On resistance 35 maximum
Low quiescent current < 20 A
ADG2108 Typical Application
AV switching in TV Automotive infotainment
AV receivers
CCTV Ultrasound applications
KVM switching
Telecom applications
Test equipment/instrumentation
PBX systems
AV receivers
CCTV Ultrasound applications
KVM switching
Telecom applications
Test equipment/instrumentation
PBX systems

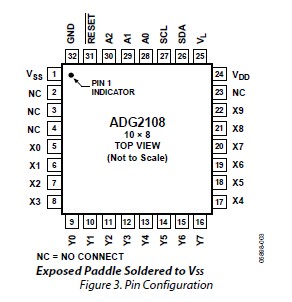

ADG2108 Connection Diagram
ADG2108YCPZ-HS-RL7
PDF/DataSheet Download
- Datasheet: ADG2108YCPZ-HS-RL7
- File Size: 768091 KB
- Manufacturer: AD
- Click here to Download
