Purchase ADG221, In-stock ADG221 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG221
MFG: ADI
D/C: 09
Description: The ADG221 and ADG222 are monolithic CMOS devices comprising four independently selectable switches. On-chip latches facilitate microp...
- Table of contents:
ADG221
-
Suppliers
DataSheet
General Description
ADG221 General Description
The ADG221 and ADG222 are monolithic CMOS devices comprising four independently selectable switches. On-chip latches facilitate microprocessor interfacing. They are designed on an enhanced
ADG221 Maximum Ratings
| Switch Type | SPST |
| # Channels | 4 |
| Ron (Ohms) | 60Ohms |
| Id, Is (ON) | 500pA |
| Bandwidth | n/a |
| t ON | 300ns |
| t OFF | 250ns |
| Supply Voltage | Dual (±15V) |

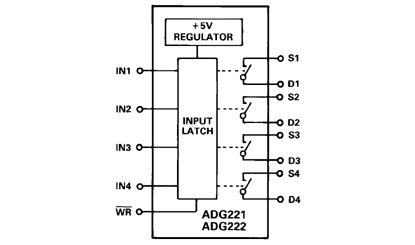

ADG221 Connection Diagram
ADG221
PDF/DataSheet Download
- Datasheet: ADG221
- File Size: 236054 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
