Part Number: ADG509A





Package Cooled: new



Description: The ADG508A and ADG509A are CMOS monolithic analog multiplexers with eight channels and dual four channels, respectively. The ADG508A s...


Urgent Purchase

ADG509A General Description



The ADG508A and ADG509A are CMOS monolithic analog multiplexers with eight channels and dual four channels, respectively. The ADG508A switches one of eight inputs to a common output, depending on

ADG509A Maximum Ratings

Sw/Mx Function x # (4:1) x 2
Interface Type Parallel
Available Packages LCC,SOIC,DIP
Max Analog Signal Range Vss to Vdd
Ron (Ohms) 280Ohms
Ron Match (Ohms) 14Ohms
Cs (OFF) 5pF
Cs, Cd (ON) n/a
Off Isolation (-dB) 69dB
Bandwidth n/a

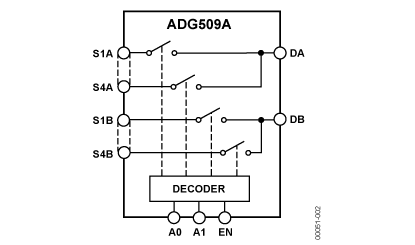

ADG509A Connection Diagram

ADG509A Connection Diagram

ADG509A datasheet

ADG509A
PDF/DataSheet Download
