Part Number: ADG529A





Package Cooled: new



Description: The ADG529A is a CMOS monolithic analog multiplexer with dual 4 channels. On-chip latches facilitate microprocessor interfacing. The AD...


Urgent Purchase

ADG529A General Description



The ADG529A is a CMOS monolithic analog multiplexer with dual 4 channels. On-chip latches facilitate microprocessor interfacing. The ADG529A switches one of 4 differential inputs to a common

ADG529A Maximum Ratings

Sw/Mx Function x # (4:1) x 2
Interface Type Parallel
Available Packages DIP,LCC
Max Analog Signal Range Vss to Vdd
Ron (Ohms) 280Ohms
Ron Match (Ohms) 14Ohms
Cs (OFF) 5pF
Cs, Cd (ON) n/a
Off Isolation (-dB) 68dB
Bandwidth n/a

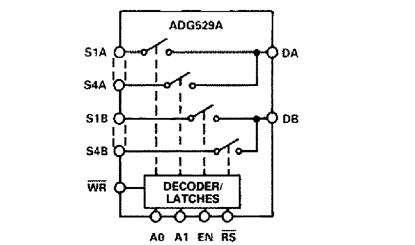

ADG529A Connection Diagram

ADG529A Connection Diagram

ADG529A datasheet
