Purchase ADG742, In-stock ADG742 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG742
MFG: ADI
D/C: 09
Description: The ADG741/ADG742 are monolithic CMOS SPST switches.These switches are designed on an advanced submicron process tha...
- Table of contents:
ADG742
-
Suppliers
DataSheet
General Description
ADG742 General Description
The ADG741/ADG742 are monolithic CMOS SPST switches.These switches are designed on an advanced submicron process that provides low power dissipation yet high switching speed,low on resistance, low leakage currents and 3 dB bandwidths of greater than 200 MHz can be achieved.
The ADG741/ADG742 can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with Analog Devices' new generation of DACs and ADCs.
As can be seen from the Functional Block Diagrams, with a logic input of "1" the switch of the ADG741 is closed, while that of the ADG742 is open. Each switch conducts equally well in both directions when ON.
The ADG741/ADG742 are available in 6-lead SC70 package.
ADG742 Maximum Ratings
(TA = 25°C unless otherwise noted)
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +7 V
Analog, Digital Inputs2 . . . . . . . . . . . . . 0.3 V to VDD +0.3 V
or 30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . .. .30 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . .100 mA
(Pulsed at 1 ms, 10% Duty Cycle Max)
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . .. . . . .65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
SC70 Package
JA Thermal Impedance . . . . . . . . . . . . . . . ... . . . . .332°C/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . .. . . .120°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . .215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .220°C
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 kV
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +7 V
Analog, Digital Inputs2 . . . . . . . . . . . . . 0.3 V to VDD +0.3 V
or 30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . .. .30 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . .100 mA
(Pulsed at 1 ms, 10% Duty Cycle Max)
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . .. . . . .65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
SC70 Package
JA Thermal Impedance . . . . . . . . . . . . . . . ... . . . . .332°C/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . .. . . .120°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . .215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .220°C
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 kV
ADG742 Features
1.8 V to 5.5 V Single Supply
2 (Typ) On Resistance
Low On-Resistance Flatness
3 dB Bandwidth >200 MHz
Rail-to-Rail Operation
6-Lead SC70
Fast Switching Times
-tON 18 ns
-tOFF 12 ns
Typical Power Consumption (<0.01 W)
TTL/CMOS Compatible

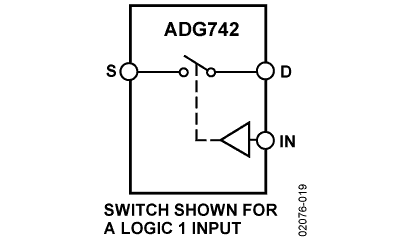

ADG742 Connection Diagram
ADG742
