Part Number: ADG794
Package Cooled: SOP-16
Description: The ADG794 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impeda...
- Table of contents:
ADG794
-
Suppliers
DataSheet
General Description
ADG794 General Description
The ADG794 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process provides low power dissipation yet gives high switching speed and low on resistance. The on resistance variation is typically less than 1.2 over the input signal range.
The bandwidth of the ADG794 is typically 300 MHz and this, coupled with low distortion (typically 0.68%), makes the part suitable for switching analog audio/video signals.
The ADG794 operates from a single 3.3 V/5 V supply and is TTL logic compatible. The switches are controlled by the logic inputs IN and EN as shown in Table 4. The EN pin allows the user to disable all switches.
These switches conduct equally well in both directions when on. In the off condition, signal levels up to the supplies are blocked. The ADG794 switches exhibit break-before-make switching action.
The ADG794 is available in a 16-pin QSOP package.
ADG794 Maximum Ratings
VDD to GND.......................................................................................−0.3 V to +6 V
Analog, Digital Inputs1.......−0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first
Continuous Current, S or D..........................................................................100 mA
Peak Current, S or D........................300 mA (pulsed at 1 ms, 10% duty cycle max)
Operating Temperature Range
Industrial (B Version).....................................................................−40°C to +85°C
Storage Temperature Range........................................................−65°C to +150°C
Junction Temperature.....................................................................................150°C
QSOP Package, Power Dissipation..............................................................566 mW
JA Thermal Impedance........................................................................149.97°C/W
Lead Temperature, Soldering
Vapor Phase (60 s)........................................................................................215°C
Infrared (15 s)...............................................................................................220°C
Analog, Digital Inputs1.......−0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first
Continuous Current, S or D..........................................................................100 mA
Peak Current, S or D........................300 mA (pulsed at 1 ms, 10% duty cycle max)
Operating Temperature Range
Industrial (B Version).....................................................................−40°C to +85°C
Storage Temperature Range........................................................−65°C to +150°C
Junction Temperature.....................................................................................150°C
QSOP Package, Power Dissipation..............................................................566 mW
JA Thermal Impedance........................................................................149.97°C/W
Lead Temperature, Soldering
Vapor Phase (60 s)........................................................................................215°C
Infrared (15 s)...............................................................................................220°C
ADG794 Features
` Bandwidth: 300 MHz
` Low insertion loss and on resistance: 5 typical
` On resistance flatness: 0.68 typical
` Single 3 V/5 V supply operation
` Low quiescent supply current: 1 nA typical
` Fast switching times:
` tON, 7 ns
` tOFF, 5 ns
` TTL/CMOS compatible
` Low insertion loss and on resistance: 5 typical
` On resistance flatness: 0.68 typical
` Single 3 V/5 V supply operation
` Low quiescent supply current: 1 nA typical
` Fast switching times:
` tON, 7 ns
` tOFF, 5 ns
` TTL/CMOS compatible
ADG794 Typical Application
· RGB switches
· HDTV
· DVD-R
· Audio/video switches
· HDTV
· DVD-R
· Audio/video switches

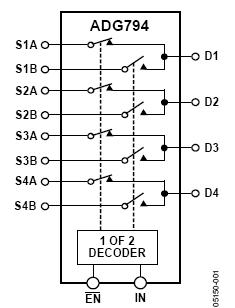

ADG794 Connection Diagram
ADG794
