Purchase ADG801, In-stock ADG801 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG801
MFG: ADI
D/C: 09
Description: The ADG801/ADG802 are monolithic CMOS SPST (Single Pole, Single Throw) switches with On Resistance of ...
- Table of contents:
ADG801
-
Suppliers
DataSheet
General Description
ADG801 General Description
The ADG801/ADG802 are monolithic CMOS SPST (Single Pole, Single Throw) switches with On Resistance of less than 0.5. These switches are designed on an advanced submicron process that provides extremely low on resistance, high switching speed and low leakage currents.
The low On Resistance of <0.5 means these parts are ideal for applications where low on resistance switching is critical.

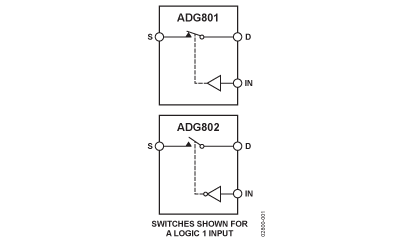

The ADG801 is a normally open (NO) switch, while the ADG802 is normally closed (NC). Each switch conducts equally well in both directions when ON.
The ADG801 and ADG802 are available in 6-lead SOT-23 and 8 Lead SOIC packages.
ADG801 Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Analog Inputs2 . . . . . . . . . . . . .. . . . . - 0.3 V to VDD +0.3 V
. . . . . . . . . . . . . . . . . . . . or 30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . 400 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . .. . . . . . 800 mA
(Pulsed at 1 ms, 10% Duty Cycle
Operating Temperature Range
Extended . . . . . . . . . . . . . . . . . . . . . . . 40°C to +125°C
Storage Temperature Range . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . .+150°C
SOIC Package, Power Dissipation . . . . .. . . . . . . . 315 mW
JA Thermal Impedance . . . . . . . . . . . . . .. .. . . . . 206°C/W
JC Thermal Impedance . . . . . . . . . . . . . .. . . . . . . 44°C/W
SOT-23 Package, Power Dissipation . . . . . ... . . . . . 282 mW
JA Thermal Impedance . . . . . . . . . . . . . .. . .. . 229.6°C/W
JC Thermal Impedance . . . . . . . . . . . . . .. . . . 91.99°C/W
Lead Temperature, Soldering (10seconds) . . . .. . . . 300°C
IR Reflow, Peak Temperature . . . . . . . . . . . . . . . . .+220°C
ESD................................................................. . . . .. ......2kV
ADG801 Features
Low On Resistance < 0.5 max at 5 V supply
0.1 On Resistance Flatness
+1.8 V to +5.5 V Single Supply
100pA Leakage Currents
14ns Switching Times
Extended Temperature Range -40oC to +125oC
High Current Carrying Capability
Tiny 6 lead SOT23 and 8 Lead SOIC Packages
Low Power Consumption
TTL/CMOS Compatible Inputs
Pin Compatible with ADG701/ADG702
0.1 On Resistance Flatness
+1.8 V to +5.5 V Single Supply
100pA Leakage Currents
14ns Switching Times
Extended Temperature Range -40oC to +125oC
High Current Carrying Capability
Tiny 6 lead SOT23 and 8 Lead SOIC Packages
Low Power Consumption
TTL/CMOS Compatible Inputs
Pin Compatible with ADG701/ADG702
ADG801 Typical Application
Power Routing
Audio and Video Signal Routing
Cellular Phones
Modems
PCMCIA Cards
Hard Drives
Data Acquisition Systems
Communication Systems
Relay replacement
Audio and Video Switching
Battery Powered Systems
