Purchase ADG918, In-stock ADG918 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG918
MFG: ADI
D/C: 09
Description: The ADG918/ADG919 are wideband switches using a CMOS process to provide high isolation and low inserti...
- Table of contents:
ADG918
-
Suppliers
DataSheet
General Description
ADG918 General Description
The ADG918/ADG919 are wideband switches using a CMOS process to provide high isolation and low insertion loss to 1GHz. The ADG918 is an absorptive switch having 50 ohm terminated shunt legs, while the ADG919 is a reflective switch. These devices are designed such that the isolation is high over the DC to 1GHz frequency range. They have on board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless applications and general purpose high frequency switching.
ADG918 Maximum Ratings
VDD to GND ................................................-0.5 V to +4 V
Inputs to GND.................................. -0.5 V to VDD + 0.3V
Input Power TBD dBm
Operating Temperature Range
Industrial (B Version).............................40°C to +85°C
Storage Temperature Range................65°C to +150°C
Junction Temperature......................................... +150°C
MSOP Package
JA Thermal Impedance ....................................206°C/W
CSP Package
JA Thermal Impedance.................................... TBD°C/W
Lead Temperature, Soldering (10seconds)........... 300°C
IR Reflow, Peak Temperature (<20 seconds) .....+235°C
NOTES
1Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
Inputs to GND.................................. -0.5 V to VDD + 0.3V
Input Power TBD dBm
Operating Temperature Range
Industrial (B Version).............................40°C to +85°C
Storage Temperature Range................65°C to +150°C
Junction Temperature......................................... +150°C
MSOP Package
JA Thermal Impedance ....................................206°C/W
CSP Package
JA Thermal Impedance.................................... TBD°C/W
Lead Temperature, Soldering (10seconds)........... 300°C
IR Reflow, Peak Temperature (<20 seconds) .....+235°C
NOTES
1Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
ADG918 Features
` Wideband DC to 2GHz
` ADG918/ADG919 Absorptive/Reflective Switches
` High Off Isolation (43 dB @ 1 GHz)
` Low Insertion Loss (1 dB DC to 900 MHz)
` Single 1.65 to 2.75 V power supply
` CMOS/LVTTL Control Logic
` 8 Lead MSOP & Tiny 3 x 3mm CSP Packages
` Low Power Consumption (5A)
` ADG918/ADG919 Absorptive/Reflective Switches
` High Off Isolation (43 dB @ 1 GHz)
` Low Insertion Loss (1 dB DC to 900 MHz)
` Single 1.65 to 2.75 V power supply
` CMOS/LVTTL Control Logic
` 8 Lead MSOP & Tiny 3 x 3mm CSP Packages
` Low Power Consumption (5A)
ADG918 Typical Application
· Wireless Communications
· General Purpose RF switching
· Dual Band Applications
· Filter Selection
· Antenna Switch
· Digital Transceiver Front-End Switch
· IF Switching
· General Purpose RF switching
· Dual Band Applications
· Filter Selection
· Antenna Switch
· Digital Transceiver Front-End Switch
· IF Switching

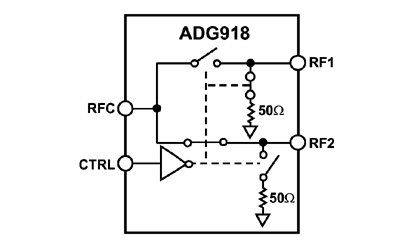

ADG918 Connection Diagram
ADG918
