ADL5322

Features: `Internally matched to 50 input and output`Internally biased`Operating frequency: 700 MHz to 1000 MHz`Gain: 20 dB`OIP3: 45 dBm`P1 dB: 27 dBm`Noise figure: 5 dB`3 mm * 3 mm LFCSP`Power supply: 5 VApplication·CDMA2000, WCDMA, and GSM base station transceivers and high power amplifiersPino...

product image

ADL5322 Picture
See larger image
SeekIC No. : 004275424 Detail

ADL5322: Features: `Internally matched to 50 input and output`Internally biased`Operating frequency: 700 MHz to 1000 MHz`Gain: 20 dB`OIP3: 45 dBm`P1 dB: 27 dBm`Noise figure: 5 dB`3 mm * 3 mm LFCSP`Power sup...

ADL5322 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADL5322
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Internally matched to 50 input and output
`Internally biased
`Operating frequency: 700 MHz to 1000 MHz
`Gain: 20 dB
`OIP3: 45 dBm
`P1 dB: 27 dBm
`Noise figure: 5 dB
`3 mm * 3 mm LFCSP
`Power supply: 5 V




Application

·CDMA2000, WCDMA, and GSM base station transceivers and high power amplifiers




Pinout

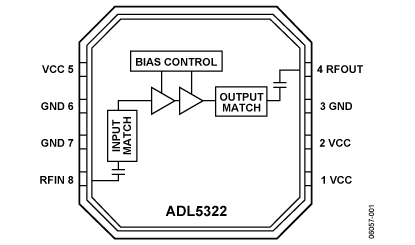

ADL5322 Diagram




Specifications

Supply Voltage, VPOS................6 V
Input Power (re: 50 ).......... 18 dBm
Equivalent Voltage............. 1.8 V rms
JC (Soldered)................28.5°C/W
Maximum Junction Temperature....... 150°C
Operating Temperature Range. −40°C to +85°C
Storage Temperature Range..−65°C to +150°C
Soldering Temperature............ 260°C

Frequency Range (MHz) 700 to 1000
Gain (dB) 19.9dB
Output IP3 (dBm) 45.3
Output P1dB (dBm) 28
Noise Figure (dB) 5dB
Supply Voltage (V) +5V
Supply Current 320mA
Package 8-Lead LFCSP
1 dB Comp Point (dBm) 27.9





Description

The ADL5322 is a high linearity GaAs driver amplifier that is internally matched to 50 for operation in the 700 MHz to 1000 MHz frequency range. The amplifier, which has a gain of 20 dB, is specially designed for use in the output stage of a cellular base station radio or as an input preamplifier in a multicarrier base station power amplifier. Matching and biasing are all on-chip. The ADL5322 is available in a Pb-free, 3mm * 3 mm, 8-lead LFCSP package with an operating temperature from −40°C to +85°C.
