Part Number: ADL5386



MFG: ADI



D/C: 09

Description: The ADL5386 is a quadrature modulator with unmatched integration levels for low intermediate frequency (IF) and radio frequency (RF) trans...


Urgent Purchase

ADL5386 General Description


The ADL5386 is a quadrature modulator with unmatched integration levels for low intermediate frequency (IF) and radio frequency (RF) transmitters within broadband wireless access systems, microwave

ADL5386 Maximum Ratings

Function Mod
RF Freq (MHz) 50 to 2200
Noise Floor (dBm/Hz) -160
Voltage Supply (V) 4.75 to 5.5
Package 40-Lead LFCSP

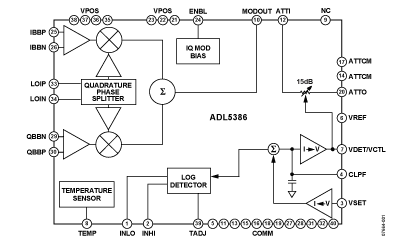

ADL5386 Connection Diagram

ADL5386 Connection Diagram

ADL5386 datasheet
