Part Number: ADL5542



MFG: ADI



D/C: 09

Description: The ADL5542 is a broadband 20 dB linear amplifier that operates at frequencies up to 6 GHz. The device can be used in a wide variety of...


Urgent Purchase

ADL5542 General Description



The ADL5542 is a broadband 20 dB linear amplifier that operates at frequencies up to 6 GHz. The device can be used in a wide variety of CATV, cellular, and instrumentation equipment.

The

ADL5542 Maximum Ratings

Frequency Range (MHz) 50 to 6000
Gain (dB) 18.7dB
Output IP3 (dBm) 39
Noise Figure (dB) 3.2dB
Supply Current 92mA
Package 8-Lead LFCSP
1 dB Comp Point (dBm) 18

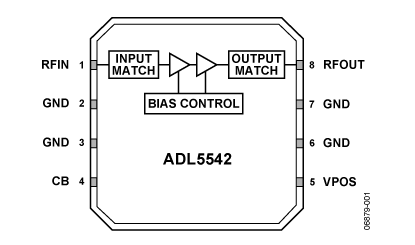

ADL5542 Connection Diagram
