Part Number: ADM1026



MFG: AD

Package Cooled: LQFP

D/C: 08+



Urgent Purchase

ADM1026 Maximum Ratings

Parameter                                                                       Rating
Positive Supply Voltage (VCC)                                          6.5 V
Voltage on +12 V VIN Pin                                                +20 V
Voltage on −12 V VIN Pin                                                −20 V
Voltage on Analog Pins                        −0.3 V to (VCC + 0.3 V)
Voltage on Open Drain Digital Pins                −0.3 V to +6.5 V
Input Current at any Pin                                                ±5 mA
Package Input Current                                                ±20 mA
Maximum Junction Temperature (TJMAX)                       150°C
Storage Temperature Range                       −65°C to +150°C
Lead Temperature, Soldering
Vapor Phase (60 sec)                                                    215°C
Infrared (15 sec)                                                           200°C
ESD Rating, −12 VIN Pin                                               1000 V
ESD Rating, All Other Pins                                            2000 V

ADM1026 Features

Up to 19 analog measurement channels (including internal  measurements)
Up to 8 fan speed measurement channels
Up to 17 general-purpose logic I/O pins
Remote temperature measurement with remote diode (two channels)
On-chip temperature sensor
Analog and PWM fan speed control outputs
2-wire serial system management bus (SMBus)
8 kB on-chip EEPROM

ADM1026 Typical Application

Network servers and personal computers
Telecommunications equipment
Test equipment and measuring instruments

ADM1026 Connection Diagram

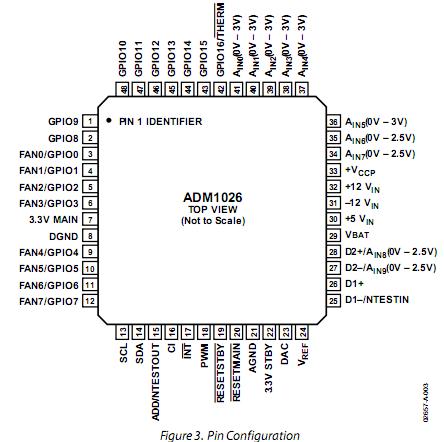

ADM1026 Connection Diagram

ADM1026 datasheet

ADM1026
PDF/DataSheet Download

Find ADM1026 Suppliers
