ADM1029*

Features: Software Programmable and Automatic Fan Speed ControlAutomatic Fan Speed Control Allows Control Independent of CPU Intervention after Initial SetupControl Loop Minimizes Acoustic Noise and Power ConsumptionRemote and Local Temperature MonitoringDual Fan Speed MeasurementSupports Backup a...

product image

ADM1029* Picture
See larger image
SeekIC No. : 004275510 Detail

ADM1029*: Features: Software Programmable and Automatic Fan Speed ControlAutomatic Fan Speed Control Allows Control Independent of CPU Intervention after Initial SetupControl Loop Minimizes Acoustic Noise and...

ADM1029* Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM1029*
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Software Programmable and Automatic Fan Speed Control
Automatic Fan Speed Control Allows Control Independent of CPU Intervention after Initial Setup
Control Loop Minimizes Acoustic Noise and Power Consumption
Remote and Local Temperature Monitoring
Dual Fan Speed Measurement
Supports Backup and Redundant Fans
Supports Hot Swapping of Fans
Cascadable Fault Output Allows Fault Signaling between Multiple ADM1029s
Address Pin Allows Up to Eight ADM1029s in A System
Small 24-Lead QSOP Package


Application

Network Servers and Personal Computers
Microprocessor-Based Office Equipment
High Availability Telecommunications Equipment

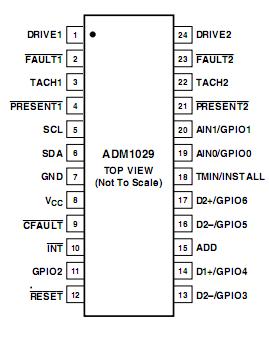

Pinout

Connection Diagram


Specifications

Positive Supply Voltage (VCC)  . . . . . . . . . . . . . . . . . . . . . 6.5 V
Voltage on Pins 1318  . . . . . . . . . . . .  0.3 V to (VCC + 0.3 V)
Voltage on Any Other Input or Output Pin  . . . 0.3 V to +6.5 V
Input Current at Any Pin . . . . . . . . . . . . . . . . . . . . . . .    ±5 mA
Package Input Current  . . . . . . . . . . . . . . . . . . . . . . .   ±20 mA
Maximum Junction Temperature (TJ max)  . . . . . . . . . .   150°C
Storage Temperature Range  . . . . . . . . . . . .65°C to +150°C
Lead Temperature
Vapor Phase (60 sec)  . . . . . . . . . . . . . . . . . . . . . . . . .  215°C
Infrared (15 sec)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .   200°C
ESD Rating All Pins  . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 V


Description

The ADM1029 is a versatile fan controller and monitor for use in personal computers, servers, telecommunications equipment, or any high-availability system where reliable control and monitoring of multiple cooling fans is required. Each ADM1029 can control the speed of one or two fans and can measure the speed of fans that have a tachometer output. The ADM1029 can also measure the temperature of one or two external sensing diodes or an internal temperature sensor, allowing fan speed to be adjusted to keep system temperature within acceptable limits. The ADM1029 has FAULT inputs for use with fans that can signal failure conditions, and inputs to detect whether or not fans are connected.

The ADM1029 has a number of useful features including an automatic fan speed control option implemented in hardware with no software requirement, automatic use of backup fans in the event of fan failure, and supports hot-swapping of failed fans.
