The ADM1034 is a dual-channel remote- and local-temperature sensor and fan controller. The remote channels monitor the temperature of two remote thermal diodes, which may be discrete 2N3904/6s or may be located on a microprocessor die. The device also monitors its own ambient temperature.
The ADM1034 can monitor and control the speed of two cooling fans. The user can program a target fan speed, or else use the look-up table to input a temperature-to-fan-speed profile. The look-up table can be configured to run the fans at discrete speeds (discrete mode) or to ramp the fan speed with temperature (linear mode).
ADM1034 Maximum Ratings
Parameter Rating
Positive Supply Voltage (VCC) −0.3 V to +6.5 V
Voltage on Any Input or Output Pin except −0.3 V to +6.5 V
Voltage on LOCATION VCC + 0.3 V
Input Current at Any Pin ±20 mA
Maximum Junction Temperature (TJ max) 150°C
Storage Temperature Range −65°C to +150°C
Lead Temperature, Soldering (10 s) 300°C
IR Reflow Peak Temperature 220°C
ESD Rating-All Pins 1500 V
Positive Supply Voltage (VCC) −0.3 V to +6.5 V
Voltage on Any Input or Output Pin except −0.3 V to +6.5 V
Voltage on LOCATION VCC + 0.3 V
Input Current at Any Pin ±20 mA
Maximum Junction Temperature (TJ max) 150°C
Storage Temperature Range −65°C to +150°C
Lead Temperature, Soldering (10 s) 300°C
IR Reflow Peak Temperature 220°C
ESD Rating-All Pins 1500 V
ADM1034 Features
1 local and 2 remote temperature channels
±1°C accuracy on local and remote channels
Automatic remote temperature channels, up to 1 kΩ
Fast (up to 64 measurements per second)
SMBus 2.0, 1.1, and 1.0 compliant
SMBus address input/LOCATION input to UDID
Programmable over-/undertemperature limits
Programmable fault queue
Fail-safe overtemperature comparator output
Fan speed (RPM) controller
±1°C accuracy on local and remote channels
Automatic remote temperature channels, up to 1 kΩ
Fast (up to 64 measurements per second)
SMBus 2.0, 1.1, and 1.0 compliant
SMBus address input/LOCATION input to UDID
Programmable over-/undertemperature limits
Programmable fault queue
Fail-safe overtemperature comparator output
Fan speed (RPM) controller
ADM1034 Typical Application
Desktop and notebook PCs
Embedded systems
Telecommunications equipment
LCD projectors
Embedded systems
Telecommunications equipment
LCD projectors

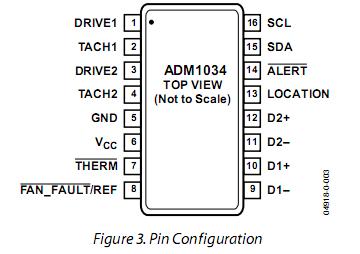

ADM1034 Connection Diagram
ADM1034
PDF/DataSheet Download
- Datasheet: ADM1034
- File Size: 1338814 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
- ·ADM1014
- AD [Analog Devices]
- Dual PCI Hot-PlugTM Controller
- 171739 KB
- ·ADM1014JRU
- AD [Analog Devices]
- Dual PCI Hot-PlugTM Controller
- 171739 KB
- ·ADM101E
- AD [Analog Devices]
- Craft PortTM Tiny RS-232 Transceiver for Portable Applications
- 66054 KB
- ·ADM101EARM
- AD [Analog Devices]
- Craft PortTM Tiny RS-232 Transceiver for Portable Applications
- 66054 KB
- ·ADM1020
- AD [Analog Devices]
- 8-Lead, Low-Cost, System Temperature Monitor
- 135461 KB
- ·ADM1020AR-REEL
- AD [Analog Devices]
- 8-Lead, Low-Cost, System Temperature Monitor
- 135461 KB
- ·ADM1020AR-REEL7
- AD [Analog Devices]
- 8-Lead, Low-Cost, System Temperature Monitor
- 135461 KB
- ·ADM1021
- AD [Analog Devices]
- Low Cost Microprocessor System Temperature Monitor
- 143146 KB
ADM1034 Relative Products

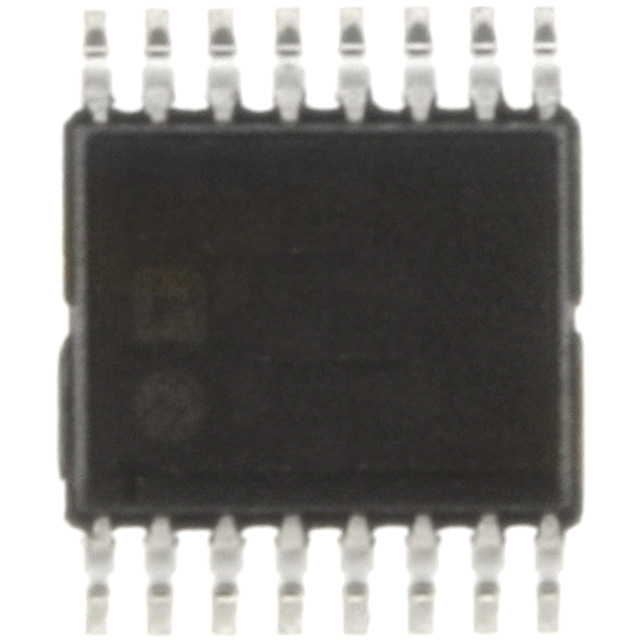

ADM1033ARQZ
