ADM1065

Features: Complete supervisory and sequencing solution for up to 10 supplies 10 supply fault detectors enable supervision of supplies to better than 1% accuracy 5 selectable input attenuators allow supervision: Supplies up to 14.4 V on VH Supplies up to 6 V on VP14 5 dual-function inputs, VX15: H...

product image

ADM1065 Picture
See larger image
SeekIC No. : 004275549 Detail

ADM1065: Features: Complete supervisory and sequencing solution for up to 10 supplies 10 supply fault detectors enable supervision of supplies to better than 1% accuracy 5 selectable input attenuators allow...

ADM1065 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM1065
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Complete supervisory and sequencing solution for up to 10 supplies
10 supply fault detectors enable supervision of supplies to better than 1% accuracy
5 selectable input attenuators allow supervision:
    Supplies up to 14.4 V on VH
    Supplies up to 6 V on VP14
5 dual-function inputs, VX15:
    High impedance input to supply fault detector with thresholds between 0.573 V and 1.375 V
    General-purpose logic input
10 programmable output drivers (PDO110):
    Open collector with external pull-up
    Push/pull output, driven to VDDCAP or VPn
    Open collector with weak pull-up to VDDCAP or VPn
    Internally charge-pumped high drive for use with external N-FET (PDO16 only)
Sequencing engine (SE) implements state machine control of PDO outputs:
    State changes conditional on input events
    Enables complex control of boards
    Power-up and power-down sequence control
    Fault event handling
    Interrupt generation on warnings
    Watchdog function can be integrated in SE
    Program software control of sequencing through SMBus
Device powered by the highest of VP14, VH for improved redundancy
User EEPROM: 256 bytes
Industry-standard 2-wire bus interface (SMBus)
Guaranteed PDO low with VH, VPn = 1.2 V
40-lead 6 mm * 6 mm LFCSP and 48-lead 7 mm * 7 mm TQFP packages


Application

Central office systems
Servers/routers
Multivoltage system line cards
DSP/FPGA supply sequencing
In-circuit testing of margined supplies


Pinout

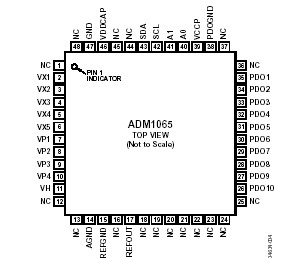

Connection Diagram


Specifications

Parameter Rating
Voltage on VH Pin
Voltage on VP Pins
Voltage on VX Pins
Input Current at Any Pin
Package Input Current
Maximum Junction Temperature (TJ max)
Storage Temperature Range
Lead Temperature, Soldering
   Vapor Phase, 60 sec
ESD Rating, All Pins		 16 V
7 V
−0.3 V to +6.5 V
±5 mA
±20 mA
150°C
−65°C to +150°C

215°C
2000 V



Description

The ADM1065 is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems.
