Purchase ADM209, In-stock ADM209 From SeekIC.
MFG:ADI D/C:09
Part Number: ADM209
MFG: ADI
D/C: 09
Description: The ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.28 communications inte...
- Table of contents:
ADM209
-
Suppliers
DataSheet
General Description
ADM209 General Description
The ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM205, ADM206, ADM211, and ADM213 feature a low power shutdown mode which reduces power dissipation to less than 5 µW, making them ideally suited for battery powered equipment. The ADM205 does not require any external components and is particularly useful in applications where printed circuit board space is critical. The ADM213 has an active-low shutdown and an active-high receiver enable control. Two receivers of the ADM213 remain active during shutdown. This feature is useful for ring indicator monitoring.
All members of the ADM2xx family, except the ADM209, include two internal charge pump voltage converters which allow operation from a single 5 V supply. These converters convert the 5 V input power to the ±10 V required for RS-232 output levels. The ADM209 is designed to operate from 5 V and 12 V supplies. An internal +12 V to 12 V charge pump voltage converter generates the 12 V supply.
ADM209 Maximum Ratings
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . (VCC 0.3 V) to +14 V
V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 14 V
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VCC + 0.3 V)
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . . (V+, + 0.3 V) to (V, 0.3 V)
ROUT . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Power Dissipation
N-24 DIP (Derate 13.5 mW/°C above 70°C) . . . . . 1000 mW
N-24A DIP (Derate 13.5 mW/°C above 70°C) . . . . . 500 mW
R-24 SOIC (Derate 12 mW/°C above 70°C) . . . . . . .850 mW
R-28 SOIC (Derate 12.5 mW/°C above 70°C) . . . . .900 mW
RS-28 SSOP (Derate 10 mW/°C above 70°C) . . . . 900 mW
Q-24 Cerdip (Derate 12.5 mW/°C above 70°C) . . .1000 mW
D-24 Ceramic (Derate 20 mW/°C above 70°C) . . . 1000 mW
Thermal Impedance, JA
N-24 DIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120°C/W
N-24A DIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110°C/W
R-24 SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85°C/W
R-28 SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
RS-28 SSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°C/W
Q-14 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105°C/W
Q-16 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°C/W
Q-20 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100°C/W
Q-24 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C/W
D-24 Ceramic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . 65°C to +150°C
Lead Temperature, Soldering . . . . . . . . . . . . . . . . . .. 300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. 220°C
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . (VCC 0.3 V) to +14 V
V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 14 V
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VCC + 0.3 V)
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . . (V+, + 0.3 V) to (V, 0.3 V)
ROUT . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Power Dissipation
N-24 DIP (Derate 13.5 mW/°C above 70°C) . . . . . 1000 mW
N-24A DIP (Derate 13.5 mW/°C above 70°C) . . . . . 500 mW
R-24 SOIC (Derate 12 mW/°C above 70°C) . . . . . . .850 mW
R-28 SOIC (Derate 12.5 mW/°C above 70°C) . . . . .900 mW
RS-28 SSOP (Derate 10 mW/°C above 70°C) . . . . 900 mW
Q-24 Cerdip (Derate 12.5 mW/°C above 70°C) . . .1000 mW
D-24 Ceramic (Derate 20 mW/°C above 70°C) . . . 1000 mW
Thermal Impedance, JA
N-24 DIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120°C/W
N-24A DIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110°C/W
R-24 SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85°C/W
R-28 SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
RS-28 SSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°C/W
Q-14 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105°C/W
Q-16 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°C/W
Q-20 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100°C/W
Q-24 Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C/W
D-24 Ceramic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . 65°C to +150°C
Lead Temperature, Soldering . . . . . . . . . . . . . . . . . .. 300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. 220°C
ADM209 Features
0.1F to 10 F Capacitors
120 kB/s Data Rate
Two Receivers Active in Shutdown (ADM213)
On-Board DC-DC Converters
±9 V Output Swing with 5 V Supply
Low Power (15 mW)
Low-Power Shutdown 5 W
±30 V Receiver Input Levels
Latch-Up FREE
Plug-In Upgrade for MAX205-211/213
120 kB/s Data Rate
Two Receivers Active in Shutdown (ADM213)
On-Board DC-DC Converters
±9 V Output Swing with 5 V Supply
Low Power (15 mW)
Low-Power Shutdown 5 W
±30 V Receiver Input Levels
Latch-Up FREE
Plug-In Upgrade for MAX205-211/213
ADM209 Typical Application
Computers
Peripherals
Modems
Printers
Instruments
Peripherals
Modems
Printers
Instruments

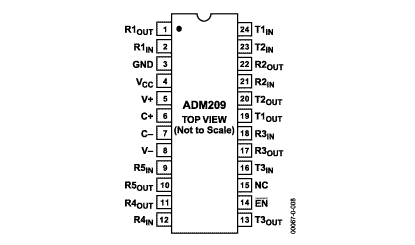

ADM209 Connection Diagram
ADM209
