The ADM222, ADM232A, ADM242 are a family of high speed RS-232 line drivers/receivers offering transmission rates up to 200 kB/s. Operating from a single +5 V power supply, a highly
efficient on-chip charge pump using small (0.1 µF) external capacitors allows RS-232 bipolar levels to be developed. Two RS-232 drivers and two RS-232 receivers are provided on each device.
The devices are fabricated on BiCMOS, an advanced mixed technology process which combines low power CMOS with high speed bipolar circuitry. This allows for transmission rates up to 200 kB/s yet minimizes the quiescent power supply current to under 5 mA.
The ADM232A is a pin-compatible, high speed upgrade for the AD232 and for the ADM232L. It is available in 16-pin DIP and in both narrow and wide surface mount (SOIC) packages.
The ADM222 contains an additional shutdown (SHDN) func-tion which may be used to disable the device thereby reducing the supply current to 0.1 µA. During shutdown, all transmit/ receive functions are disabled. The ADM222 is available in 18-pin DIP and in a wide surface mount (SOIC) package.The ADM242 combines both shutdown (SHDN) and enable ( EN) functions. The shutdown function reduces the supply curent to 0.1 mA. During shutdown, the transmitters are disabled but the receivers continue to operate normally. The enable function allows the receiver outputs to be disabled thereby facilitating sharing a common bus. The ADM242 is available in 18-pin DIP and in a wide surface mount (SOIC) package.
ADM222 Maximum Ratings
(TA = +25˚C unless otherwise noted)
VCC . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . +6 V
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (VCC 0.3 V) to +13 V
V . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . +0.3 V to 13 V
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . .. . . . . . . 0.3 V to (VCC + 0.3 V)
RIN . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . ±30 V
Output Voltages
TOUT . . . . . . . . . . . . . . . .. . . . . . . (V+, +0.3 V) to (V, 0.3 V)
ROUT . . . . . . . . . . . . . . . . . . . . .. . . . . . 0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . Continuous
Power Dissipation N-16 . . . . . . . . . . . . . .. . . . . . . . . . . . 400 mW
(Derate 7.5 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
Power Dissipation R-16N . . . . . . . . . . . . .. . . . . . . . . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . .. . . . . . 80°C/W
Power Dissipation R-16W . . . . . . . . . . . . . . . . . . .. . . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
Power Dissipation N-18 . . . . . . . . . . . . . . . . . . . . . .. . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . .. . . . . 80°C/W
Power Dissipation R-18W . . . . . . . . . . . . . . . . . . . . . . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . .. . . . . . . 80°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . .. . . . 65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . .. . . . . . . . . . . +300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . .. . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
VCC . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . +6 V
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (VCC 0.3 V) to +13 V
V . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . +0.3 V to 13 V
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . .. . . . . . . 0.3 V to (VCC + 0.3 V)
RIN . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . ±30 V
Output Voltages
TOUT . . . . . . . . . . . . . . . .. . . . . . . (V+, +0.3 V) to (V, 0.3 V)
ROUT . . . . . . . . . . . . . . . . . . . . .. . . . . . 0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . Continuous
Power Dissipation N-16 . . . . . . . . . . . . . .. . . . . . . . . . . . 400 mW
(Derate 7.5 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
Power Dissipation R-16N . . . . . . . . . . . . .. . . . . . . . . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . .. . . . . . 80°C/W
Power Dissipation R-16W . . . . . . . . . . . . . . . . . . .. . . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
Power Dissipation N-18 . . . . . . . . . . . . . . . . . . . . . .. . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . .. . . . . 80°C/W
Power Dissipation R-18W . . . . . . . . . . . . . . . . . . . . . . . . 400 mW
(Derate 7 mW/°C above +70°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . .. . . . . . . 80°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . .. . . . 65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . .. . . . . . . . . . . +300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . .. . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
ADM222 Features
200 kB/s Transmission Rate
Small (0.1 µF) Charge Pump Capacitors
Single 5 V Power Supply
Meets All EIA-232-E and V.28 Specifications
Two Drivers and Two Receivers
On-Board DC-DC Converters
±9 V Output Swing with +5 V Supply
±30 V Receiver Input Levels
Pin Compatible with MAX222/MAX232A/MAX242
Small (0.1 µF) Charge Pump Capacitors
Single 5 V Power Supply
Meets All EIA-232-E and V.28 Specifications
Two Drivers and Two Receivers
On-Board DC-DC Converters
±9 V Output Swing with +5 V Supply
±30 V Receiver Input Levels
Pin Compatible with MAX222/MAX232A/MAX242
ADM222 Typical Application
Computers
Peripherals
Modems
Printers
Instruments
Peripherals
Modems
Printers
Instruments

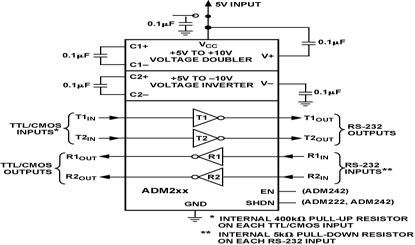

ADM222 Connection Diagram
ADM222
PDF/DataSheet Download
- Datasheet: ADM222
- File Size: 340281 KB
- Manufacturer: AD [Analog Devices]
