Part Number: ADM2487E



MFG: ADI



D/C: 09

Description: The ADM2482E/ADM2487E are isolated data transceivers with ±15 kV ESD protection and are suitable for high speed, half-duplex or full-duple...


Urgent Purchase

ADM2487E General Description


The ADM2482E/ADM2487E are isolated data transceivers with ±15 kV ESD protection and are suitable for high speed, half-duplex or full-duplex communication on multipoint transmission lines. For

ADM2487E Maximum Ratings

Protocols RS-422,RS-485
Pwr Supply (Vnom) +3 to +5 & ISO +3
#Tx 2
# Rx 1
Data Rate 500kbps
Low Power Shutdown No
Operating Temp Range -40 to +85

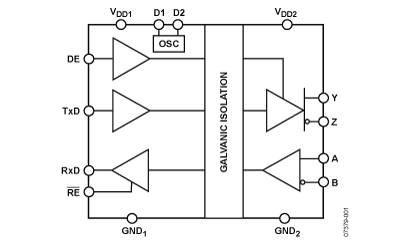

ADM2487E Connection Diagram

ADM2487E Connection Diagram
