Part Number: ADM2490E



MFG: ADI



D/C: 09

Description: The ADM2490E is an isolated data transceiver with ±8 kV ESD protection that is suitable for high speed, full-duplex communi-cation on mult...


Urgent Purchase

ADM2490E General Description


The ADM2490E is an isolated data transceiver with ±8 kV ESD protection that is suitable for high speed, full-duplex communi-cation on multipoint transmission lines. It is designed for balanced

ADM2490E Maximum Ratings

Max Operating Temp (°C) 105Deg
Insulation Rating (kVrms) 5kV rms
# Ch 1
Output Default State High

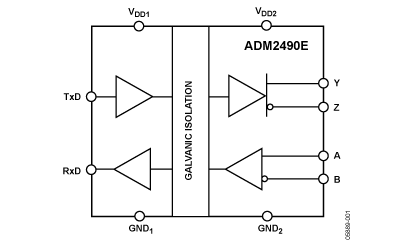

ADM2490E Connection Diagram

ADM2490E Connection Diagram
