Part Number: ADM3490E



MFG: ADI



D/C: 09

Description: The ADM3483E/ADM3486E/ADM3488E/ADM3490E/ADM3491E are 3.3 V low power data transceivers with ±15 kV ESD protection suitable for fullandhalf...


Urgent Purchase

ADM3490E General Description


The ADM3483E/ADM3486E/ADM3488E/ADM3490E/ADM3491E are 3.3 V low power data transceivers with ±15 kV ESD protection suitable for fullandhalf-duplex communication on multipoint bus transmission lines.

ADM3490E Maximum Ratings

# of Nodes On Bus 32
Drvr/Rcvr Enable No
Fail Safe Open
Isolation V (rms) ---
Available Packages SOIC
ESD-Protection 15 kV
Pwr Supply (Vnom) +3.3
Data Rate 12Mbps
Full-Half Duplex Full

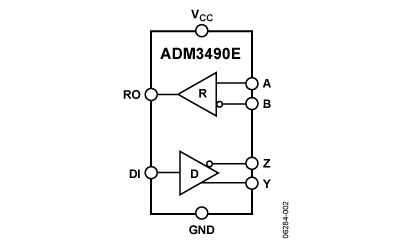

ADM3490E Connection Diagram

ADM3490E Connection Diagram
