ADM4857

Features: EIA RS-485-/RS-422-compliant Data rate options ADM4850/ADM4854-115 kbps ADM4851/ADM4855-500 kbps ADM4852/ADM4856-2.5 Mbps ADM4853/ADM4857-10 Mbps Half- and full-duplex options Reduced slew rates for low EMI True fail-safe receiver inputs 5 µA (maximum) supply current in shutdown mo...

product image

ADM4857 Picture
SeekIC No. : 004275867 Detail

ADM4857: Features: EIA RS-485-/RS-422-compliant Data rate options ADM4850/ADM4854-115 kbps ADM4851/ADM4855-500 kbps ADM4852/ADM4856-2.5 Mbps ADM4853/ADM4857-10 Mbps Half- and full-duplex options Reduced slew...

floor Price/Ceiling Price

Part Number:
ADM4857
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

EIA RS-485-/RS-422-compliant Data rate options
ADM4850/ADM4854-115 kbps
ADM4851/ADM4855-500 kbps
ADM4852/ADM4856-2.5 Mbps
ADM4853/ADM4857-10 Mbps
Half- and full-duplex options
Reduced slew rates for low EMI
True fail-safe receiver inputs 5 µA (maximum) supply current in shutdown mode Up to 256 transceivers on one bus
Outputs high-z when disabled or powered off −7 V to +12 V bus common-mode range
Thermal shutdown and short-circuit protection
Pin-compatible with MAX308x
Specified over the −40°C to +85°C temperature range
Available in 8-lead SOIC and LFCSP packages





Application

Low power RS-485 applications
EMI-sensitive systems
DTE-DCE interfaces
Industrial control
Packet switching
Local area networks
Level translators





Pinout

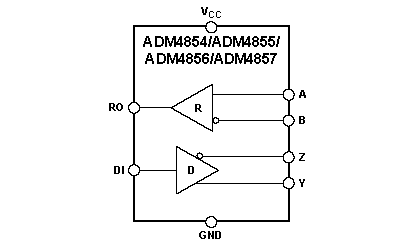

ADM4857 Diagram




Specifications

Isolation V (rms) ---
Available Packages SOIC
ESD-Protection ---
Pwr Supply (Vnom) +5
Data Rate 10Mbps
Full-Half Duplex Full
# of Nodes On Bus 256
Drvr/Rcvr Enable No
Fail Safe Open, Short


VCC to GND 6 V
Digital I/O Voltage (DE, RE, DI, ROUT) −0.3 V to VCC + 0.3 V
Driver Output/Receiver Input Voltage −9 V to +14 V
Operating Temperature Range −40°C to +85°C
Storage Temperature Range −65°C to +125°C
JA Thermal Impedance
SOIC 110°C/W
LFCSP 62°C/W
Lead Temperature
Soldering (10 s) 300°C
Vapour Phase (60 s) 215°C
Infrared (15 s)220°C





Description

The ADM4850−ADM4857 are differential line transceivers suitable for high speed half- and full-duplex datacomm unication on multipoint bus transmission lines. They are designed for balanced data transmission and comply with EIA Standards RS-485 and RS-422. The ADM4850−ADM4857 are half-duplex transceivers, which share differential lines and have separate enable inputs for the driver and receiver. The full-duplex ADM4850−ADM4857 transceivers have dedicated differential line driver outputs and receiver inputs.

The ADM4850−ADM4857 parts have a 1/8-unit-load receiver input impedance, which allows up to 256 transceivers on one bus. Since only one driver should be enabled at any time, the output of a disabled or powered-down driver is three-stated to avoid overloading the bus.

The ADM4850−ADM4857 receiver inputs have a true fail-safe feature, which ensures a logic high output level when the inputs are open or shorted. This guarantees that the receiver outputs are in a known state before communication begins and when co-mmunication ends. The driver outputs are slew-rate limited to reduce EMI and data errors caused by reflections from improperly terminated buses. Excessive power dissipation caused by bus contention or by output shorting is prevented with a thermal shutdown circuit.

The ADM4850−ADM4857 parts are fully specified over the commercial and industrial temperature ranges, and are available in 8-lead SOIC and LFCSP packages.
