ADM5180

Features: ` Eight Differential Line Receivers in One Package` Meets EIA Standard EIA-232E, 423A, 422A and CCITT V.10, V.11, V.28` Single +5 V Supply` Differential Inputs Withstand ±25 V` Internal Hysteresis` Low Power CMOS 3.5 mA Supply Current` TTL/CMOS Compatible Outputs` Available in 28-Pin DIP...

product image

ADM5180 Picture
See larger image
SeekIC No. : 004275893 Detail

ADM5180: Features: ` Eight Differential Line Receivers in One Package` Meets EIA Standard EIA-232E, 423A, 422A and CCITT V.10, V.11, V.28` Single +5 V Supply` Differential Inputs Withstand ±25 V` Internal Hy...

ADM5180 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM5180
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Eight Differential Line Receivers in One Package
` Meets EIA Standard EIA-232E, 423A, 422A and
  CCITT V.10, V.11, V.28
` Single +5 V Supply
` Differential Inputs Withstand ±25 V
` Internal Hysteresis
` Low Power CMOS 3.5 mA Supply Current
` TTL/CMOS Compatible Outputs
` Available in 28-Pin DIP and PLCC Packages
` Low Power Replacement for UC5180C/NE5180


Application

· High Speed Communication
· Computer I-O Ports
· Peripherals
· High Speed Modems
· Printers
· Logic Level Translation


Pinout

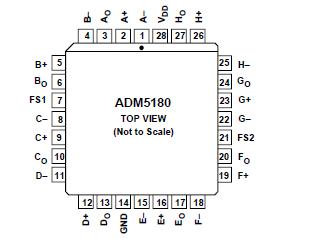

Connection Diagram


Specifications

VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7 V
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . . +15 V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. +25 V
Failsafe Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to VCC
Output Short Circuit Duration . . . . . . . . . . . . . . . . . Continuous2
Power Dissipation Plastic DIP . . . . . . . . . . . . . . . . . . .  1250 mW
(Derate at 12.5 mW/°C Above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . .. 75°C/W
Power Dissipation PLCC . . . . . . . . . . . . . . . . . . . . . . ...1000 mW
(Derate at 12.5 mW/°C Above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . .+80°C/W
Operating Temperature Range
Commercial ( J Version) . . . . . . . . . . . . . . . . . . . ...0°C to +70°C
Industrial (A Version) . . . . . . . . . . . . . . . . . . . ...40°C to +80°C
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . . . .+300°C
Vapour Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . ... +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+220°C

NOTES
1This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
2Only one output should be shorted at any time.


Description

The ADM5180 is an octal differential line receiver suitable for a wide range of digital communication systems with data rates up to 200 kB/s. Input signals conforming to EIA Standards 232-E, 422A and CCITT V.10, V.11, V.28, X.26, and X.27 are accepted and translated into TTL /CMOS output signal levels.

The ADM5180 is a superior upgrade for the UC5180C and the NE5180. ADM5180 is fabricated on an advanced BiCMOS process, allowing high speed bipolar circuitry to be combined with low power CMOS. This minimizes the power consumption to less than 25 mW. A failsafe function ensures a known output state under a variety of input fault conditions as defined in RS-422A and RS-423A. The failsafe function is controlled by FS1 and FS2. Each controls four receivers. With FS = Low and a fault condition the output is forced low while if FS = High, the output is forced high.

The ADM5180 is available in both 28-pin DIP and 28-lead PLCC packages.
