ADM6315

Features: Specified over Temperature Low Power Consumption (5 A Typ) Precision Voltage Monitor of Voltages from 2.5 V to 5 Vat 100 mV Increments Reset Assertion Down to VCC > 1 V Reset Timeout Periods: 1 ms, 20 ms, 140 ms,or 1120 ms (Min) Built-In Manual Reset Pin Compatible with the ADM811 Av...

product image

ADM6315 Picture
See larger image
SeekIC No. : 004275909 Detail

ADM6315: Features: Specified over Temperature Low Power Consumption (5 A Typ) Precision Voltage Monitor of Voltages from 2.5 V to 5 Vat 100 mV Increments Reset Assertion Down to VCC > 1 V Reset Timeout P...

ADM6315 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM6315
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Specified over Temperature
Low Power Consumption (5 A Typ)
Precision Voltage Monitor of Voltages from 2.5 V to 5 V
at 100 mV Increments
Reset Assertion Down to VCC > 1 V
Reset Timeout Periods: 1 ms, 20 ms, 140 ms,
or 1120 ms (Min)
Built-In Manual Reset
Pin Compatible with the ADM811
Available in SOT-143 Package




Application

Microprocessor Systems
Controllers
Intelligent Instruments
Automotive Systems
Safety Systems
Portable Instruments




Pinout

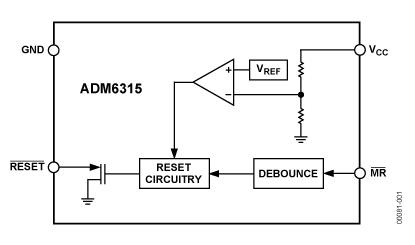

ADM6315 Diagram

Connection Diagram




Specifications

# of Monitored Voltages 1
Backup-Battery Switch No
Manual Reset Capability Yes
Package SOT
Reset Threshold Summary 6 Options--2.63 to 4.63V
Reset Output-Stage Active-Low/Open-Drain
Min Reset Timeout (ms) 1,1120,140,20
Watchdog Timer No


Terminal Voltage (With Respect to Ground)
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
All Other Inputs . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
Input Current
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output Current
RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Power Dissipation (TA = 70°C)
RA-4, SOT-143
Derate by 4 mW/°C above 70°C . . . . . . . . . . . . . .. 320 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 330°C/W
Operating Temperature Range . . . . . . . . . . 40°C to +125°C
Storage Temperature Range . . . . . . . . . . . . .65°C to +160°C
Lead Temperature (Soldering, 10 sec) . . .. . . . . . . . . . . 300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 kV




Description

The ADM6315 is a reliable voltage-monitoring device that is suitable for use in most voltage-monitoring applications.

The ADM6315 is designed to monitor as little as a 1.8% degradation
