Purchase ADM811, In-stock ADM811 From SeekIC.
MFG:ADI D/C:09
Part Number: ADM811
MFG: ADI
D/C: 09
Description: The ADM811/ADM812 are reliable voltage monitoring devices suitable for use in most voltage monitoring ...
- Table of contents:
ADM811
-
Suppliers
DataSheet
General Description
ADM811 General Description
The ADM811/ADM812 are reliable voltage monitoring devices suitable for use in most voltage monitoring applications.
The ADM811/ADM812 are designed to monitor five different voltages, each allowing for a 5% or 10% degradation of standard PSU voltages before a reset occurs. These voltages have been selected for the effective monitoring of +3 V, +3.3 V and +5 supply voltage levels.
Included in this circuit is a debounced Manual Reset input. Reset can be activated using an electrical switch (or an input from another digital device) or by a degradation of the supply voltage. The Manual Reset function is very useful especially if the circuit in which the ADM811/ADM812 is operating enters into a state that can only be detected by the user. Allowing the user to manually reset a system can reduce the damage or danger that could be otherwise caused by an out-of-control or locked up system.
ADM811 Maximum Ratings
Terminal Voltage (With Respect to Ground)
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +6 V
All Other Inputs . . . . . . . . . . . . . . . . .0.3 V to VCC + 0.3 V
Input Current
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
MR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output Current
RESET, RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 20 mA
Power Dissipation (TA = +70°C)
RT-4, SOT-143 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mW
Derate by 4 mW/°C above +70°C
qJA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 330°C/W
Operating Temperature Range . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . 65°C to +160°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . .+300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . .+215°C
Infrared (15 secs) . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 kV
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +6 V
All Other Inputs . . . . . . . . . . . . . . . . .0.3 V to VCC + 0.3 V
Input Current
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
MR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output Current
RESET, RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 20 mA
Power Dissipation (TA = +70°C)
RT-4, SOT-143 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mW
Derate by 4 mW/°C above +70°C
qJA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 330°C/W
Operating Temperature Range . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . 65°C to +160°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . .+300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . .+215°C
Infrared (15 secs) . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 kV
ADM811 Features
Superior Upgrade for MAX811/MAX812
Specified Over Temperature
Low Power Consumption (5 A Typ)
Precision Voltage Monitor: +3 V, +3.3 V, +5 V Options
Reset Assertion Down to 1 V VCC
140 ms Min Power-On Reset
Logic Low RESET Output (ADM811)
Logic High RESET Output (ADM812)
Built-In Manual Reset
Specified Over Temperature
Low Power Consumption (5 A Typ)
Precision Voltage Monitor: +3 V, +3.3 V, +5 V Options
Reset Assertion Down to 1 V VCC
140 ms Min Power-On Reset
Logic Low RESET Output (ADM811)
Logic High RESET Output (ADM812)
Built-In Manual Reset
ADM811 Typical Application
Microprocessor Systems
Controllers
Intelligent Instruments
Automotive Systems
Safety Systems
Portable Instruments
Controllers
Intelligent Instruments
Automotive Systems
Safety Systems
Portable Instruments

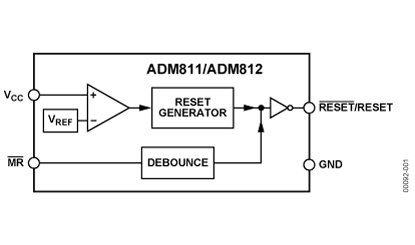

ADM811 Connection Diagram
ADM811
