ADMC401BSTZ suppliers, ADMC401BSTZ price trend, ADMC401BSTZ PDF download, circuit diagram from SeekIC

Purchase ADMC401BSTZ, In-stock ADMC401BSTZ From SeekIC.

MFG:Analog Devices Inc. Category:ICs, Integrated Circuits, Semiconductors

Five Points

Category: ICs, Integrated Circuits, Semiconductors

MFG: Analog Devices Inc.

Descriptions: IC DSP 8CH 12BIT MOTCTRL 144LQFP

Price Break

1
25
100
250
500

Unit Price

35.42000
33.05400
30.69300
30.10276
29.51250

Extended Price

35.42
826.35
3069.30
7525.69
14756.25

(All prices are in USD) Prices for reference only

IC DSP 8CH 12BIT MOTCTRL 144LQFP

Technical/Catalog Information	ADMC401BSTZ
Vendor	Analog Devices Inc.
Category	ICs, Integrated Circuits, Semiconductors
Type	Fixed-Point DSP
Mounting Type	Surface (SMD, SMT)
Package Name	144-LQFP
Internal Memory (Bytes)	RAM (8 kB)
Internal Memory (Bytes)	ROM (6 kB)
Core Voltage Typical	5.00 V [Nom]
I/O Voltage Typical	5.00 V [Nom]
Operating Temperature	-40 °C [Min]
Operating Temperature	85 °C [Max]
Packaging	Bulk
MIPs	26.0 [Nom]
Clock Frequency	26.000 MHz [Max]
Interface(s)	SPORT
A/D Channels	8 x 12 b
Number of I/O Pins	12 [Nom]
Core Supply Voltage	4.750 V [Min]
Core Supply Voltage	5.250 V [Max]
I/O Supply Voltage	4.750 V [Min]
I/O Supply Voltage	5.250 V [Max]
Processor Size	12-Bit
Temperature Grade	Industrial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADMC401BSTZ ADMC401BSTZ

ADM1014
PDF/DataSheet Download

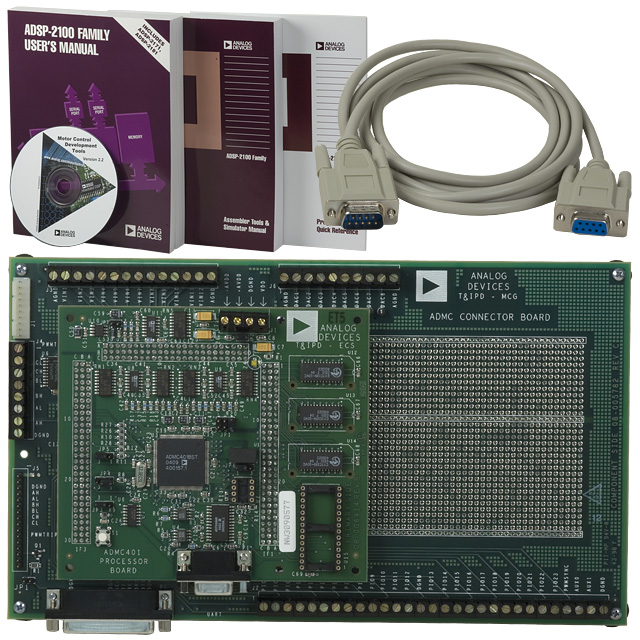

ADMC401-ADVEVALKIT
The ADMC401-ADVEVALKIT is a single-chip DSP-based controller, suitable for high performance control of ac induction motors (ACIM), permanent magnet synchronous motors (PMSM), brushless dc motors (BDCM) and switched reluctance (SR) motors in industrial applic...
ADMC401
The ADMC401 is a single-chip DSP-based controller, suitable for high performance control of ac induction motors (ACIM), permanent magnet synchronous motors (PMSM), brushless dc motors (BDCM) and switched reluctance (SR) motors in industrial applications. The...
ADMC331BST
The ADMC331BST is a low cost, single-chip DSP-based controller,suitable for ac induction motors, permanent magnet synchronous motors, brushless dc motors, and switched reluctance motors. The ADMC331BST integrates a 26 MIPS, fixed-point DSP core with a comple...
ADMC331-ADVEVALKIT
KIT EVALUATION FOR ADMC331
ADMC331
The ADMC331 is a low cost, single-chip DSP-based controller,suitable forac induction motors, permanent magnet synchronous motors, brushless dc motors, and switched reluctance motors. The ADMC331 integrates a 26 MIPS,fixed-point DSP core with a complete set o...
ADMC330
The ADMC330 is a low cost single chip DSP microcontroller optimized for stand alone ac motor control applications. The device is based on a 20 MHz fixed-point DSP core (ADSP- 2171) and a set of motor control peripherals including seven analog input channels ...
