Product Details

Description



Features:

Meets SONET Requirements for Jitter Transfer /  Generation / Tolerance
Quantizer Sensitivity: 6 mV typical
· Adjustable Slice Level: +/- 100 mV
· 1.9GHz minimum Bandwidth
Loss of Signal Detect Range: 4mV to 17mV
Single Reference Clock Frequency for all rates
   Including 15/14 (7%) Wrapper Rate
· Choice of 19.44, 38.88, 77.76 or 155.52MHz
LVPECL / LVDS / LVCMOS / LVTTL compatible inputs (LVPECL / LVDS only at 155.52 MHz)
19.44MHz Crystal Oscillator for Module apps
Loss of Lock indicator
Loopback mode for High Speed Test Data
Output Squelch & Clock Recovery Functions
Single Supply Operation: 3.3 Volts (+10%)
Low Power: 780 mW Typical
Patented Clock Recovery Architecture
7 x 7 mm 48 pin LFCSP



Application

SONET OC-3/12/48, SDH STM-1/4/16, and all associated FEC rates
WDM transponders
SONET/SDH regenerators and test equipment
Backplane applications

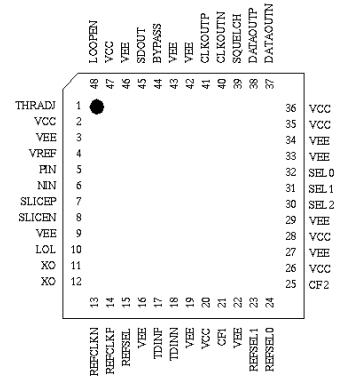

Pinout

  Connection Diagram


Specifications

Supply Voltage....................................... ........................+8 V
Input Voltage (pin x or pin xto Vcc).... ........................... .TBD
Maximum Junction Temperature.............................165 deg C
Storage Temperature Range...... ....-65 deg C to +150 deg C
Lead Temperature (Soldering 10 sec).. .................300 deg C
ESD Rating (human body model)....... ........................... ..TBD



Description

The ADN2809 provides the receiver functions of Quantization, Signal Level Detect and Clock and Data Recovery at rates of  OC-3, OC-12, Gigabit Ethernet, OC-48 and all FEC rates. All  SONET jitter requirements are met, including: Jitter Transfer; Jitter Generation; and Jitter Tolerance. All specifications are quoted for -40 to 85C ambient temperature unless otherwise  noted. The device is intended for WDM system applications and can be  used with either an external reference clock or an on-chip  oscillator crystal.  Both native rates and 15/14 rate digital  'wrappers' rates are supported by the ADN2809, without any  change of reference clock required.

This device together with a PIN diode and a TIA preamplifier  can implement a highly integrated, low cost, low power fiber  optic receiver. The receiver front end Signal Detect circuit indicates when the  input signal level has fallen below a user adjustable threshold.  The ADN2809 is available in a compact 48 pin chip scale  package.
