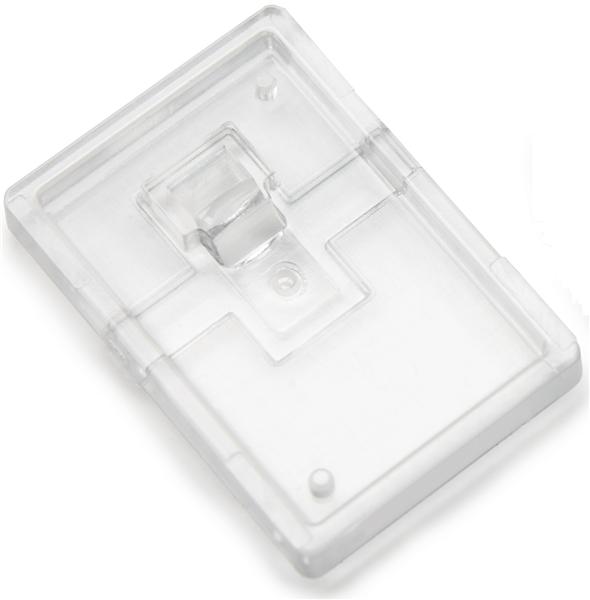

ADNS-3150-001

The ADNS-3150-001 is designed as one kind of optical mouse designer's kit that is capable of high-speed motion detection - up to 20ips and 8G, and it has a new, low-power architecture and automatic power management modes, making ADNS-3150-001 ideal for battery-and power-sensitive applications such as cordless input devices. Also this device contains an Image Acquisition System (IAS), a Digital Signal Processor (DSP), and a four wire serial port.

Features of the ADNS-3150-001 are:(1)low supply voltage range 1.8 V to 3.6 V;(2)ultra low-power consumption: active mode: 200 A at 1 MHz, 2.2 V; standby mode: 0.7 A; off mode (RAM retention): 0.1 A;(3)five power saving modes;(4)wake-up from standby mode in less than 6 s;(5)16-Bit RISC architecture, 125 ns instruction cycle time;(6)16-bit timer_A with three capture/compare registers;(7)supply voltage brownout protection;(8)4KB + 256B flash memory 256B RAM;(9)available in 28-pin plastic SOWB, 28-pin plastic TSSOP, and 32-pin QFN packages. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
