ADNS-7530

Operating Supply Voltage :
Package / Case :
Maximum Operating Temperature :
Minimum Operating Temperature :


Specifications

Address the needs to develop laser to compact mouse. Easy of assembly due to its integrated package. SFF provides good market opportunity in non-mouse applications, such as, application in mobile communication devices, portable computer peripherals, mobile electronic consumer devices, and other integrated input devices etc. It is a good platform to move on for cost reduction, customization and integration.


Description

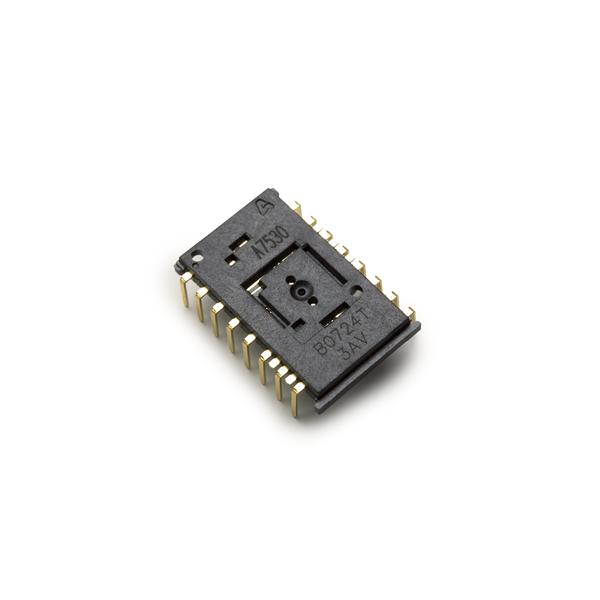

Avago Technologies ADNS-7530 is a small form factor high precision LaserStream navigation sensor. IADNS-7530 is targeted at cordless applications and space-constrained designs.  This integrated high performance small form factor (SFF) LaserStream solution consists of 3 types of lenses to enable customer design-in new mouse model without changing its existing mouse base plate. Customers can choose either SFF lens - ADNS-6150, trim lens - ADNS-6160-001, or wide trim lens - ADNS-6170-002 for its navigation system. It's targeted at optical mouse OEM and Retail partners; the chip integrates the sensor and VCSEL into a single package, providing a compact real estate component allowing for more compact and cost-effective mouse designs. Powered by latest Avago Technologies LaserStream engine, the mouse can track on more surfaces than traditional LED-based optical navigation, especially on glossy and reflective ones.
