Part Number: ADP3309
Description: The ADP3309 is a member of the ADP330x family of precision low dropout anyCAP voltage regulators. It is pin-for-pin ...
- Table of contents:
ADP3309
-
Suppliers
DataSheet
General Description
ADP3309 General Description
The ADP3309 is a member of the ADP330x family of precision low dropout anyCAP voltage regulators. It is pin-for-pin and functionally compatible with National's LP2981, but offers performance advantages. The ADP3309 stands out from con- ventional LDOs with a novel architecture and an enhanced process. Its patented design requires only a 0.47 µF output capacitor for stability. This device is stable with any type of capacitor regardless of its ESR (Equivalent Series Resistance) value, including ceramic types for space restricted applications.
The ADP3309 achieves ±1.2% accuracy at room temperature and ±2.2% overall accuracy over temperature, line and load regulations. The dropout voltage of the ADP3309 is only 120 mV (typical) at 100 mA. This device also includes a current limit and a shutdown feature. In shutdown mode, the ground current is reduced to ~1 µA.
ADP3309 Maximum Ratings
Input Supply Voltage . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Shutdown Input Voltage . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Operating Ambient Temperature Range . . . . . . 55°C to +125°C
Operating Junction Temperature Range . . . . . . 55°C to +125°C
JA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190°C/W
JC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92°C/W
Storage Temperature Range . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . .+300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+220°C
ADP3309 Features
61.2% Accuracy Over Line and Load Regulations @ +258C
Ultralow Dropout Voltage: 120 mV Typical @ 100 mA
Requires Only CO = 0.47 mF for Stability
anyCAP = Stable with All Types of Capacitors
(Including MLCC)
Current and Thermal Limiting
Low Noise
Low Shutdown Current: 1 mA
3.0 V to 12 V Supply Range
208C to +858C Ambient Temperature Range
Several Fixed Voltage Options
Ultrasmall SOT-23-5 Package
Excellent Line and Load Regulations
APPLICATIONS
Cellular Telephones
Notebook, Palmtop Computers
Battery Powered Systems
PCMCIA Regulator
Bar Code Scanners
Camcorders, Cameras
Ultralow Dropout Voltage: 120 mV Typical @ 100 mA
Requires Only CO = 0.47 mF for Stability
anyCAP = Stable with All Types of Capacitors
(Including MLCC)
Current and Thermal Limiting
Low Noise
Low Shutdown Current: 1 mA
3.0 V to 12 V Supply Range
208C to +858C Ambient Temperature Range
Several Fixed Voltage Options
Ultrasmall SOT-23-5 Package
Excellent Line and Load Regulations
APPLICATIONS
Cellular Telephones
Notebook, Palmtop Computers
Battery Powered Systems
PCMCIA Regulator
Bar Code Scanners
Camcorders, Cameras

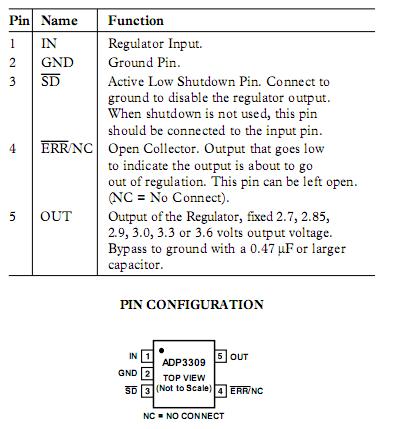

ADP3309 Connection Diagram
ADP3309
