General Description
ADP3330 General Description
The ADP3330 is a member of the ADP330x family of precision low dropout anyCAP voltage regulators. The ADP3330 operates with an input voltage range of 2.9 V to 12 V and delivers a load current up to 200 mA. The ADP3330 stands out from the conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages and higher output current than its competition. Its patented design requires only a 0.47 mF output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3330 achieves exceptional accuracy of ±0.7% at room temperature and ±1.4% over temperature, line and load variations. The dropout voltage of the ADP3330 is only 140 mV (typical) at 200 mA. This device also includes a safety current limit, thermal overload protection and a shutdown feature. In shutdown mode, the ground current is reduced to less than 2 mA. The ADP3330 has ultralow quiescent current 34 mA (typ) in light load situations.
ADP3330 Maximum Ratings
Input Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Shutdown Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Operating Ambient Temperature Range . . . . . . . . . . . . . . . . . 40°C to +85°C
Operating Junction Temperature Range . . . . . . . . . . . . . . . . 40°C to +125°C
qJA (4-Layer Board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +165°C/W
qJA (2-Layer Board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +190°C/W
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . .+300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
Shutdown Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Operating Ambient Temperature Range . . . . . . . . . . . . . . . . . 40°C to +85°C
Operating Junction Temperature Range . . . . . . . . . . . . . . . . 40°C to +125°C
qJA (4-Layer Board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +165°C/W
qJA (2-Layer Board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +190°C/W
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . .+300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
ADP3330 Features
High Accuracy Over Line and Load: 60.7% @ +258C,
±1.4% Over Temperature
Ultralow Dropout Voltage: 140 mV (Typ) @ 200 mA
Requires Only CO = 0.47 mF for Stability
anyCAP = Stable with Any Type of Capacitor (Including MLCC)
Current and Thermal Limiting
Low Noise
Low Shutdown Current: <2 mA
2.9 V to 12 V Supply Range
408C to +858C Ambient Temperature Range
Ultrasmall Thermally Enhanced Chip-on-Lead™
SOT-23-6 6-Lead Package
±1.4% Over Temperature
Ultralow Dropout Voltage: 140 mV (Typ) @ 200 mA
Requires Only CO = 0.47 mF for Stability
anyCAP = Stable with Any Type of Capacitor (Including MLCC)
Current and Thermal Limiting
Low Noise
Low Shutdown Current: <2 mA
2.9 V to 12 V Supply Range
408C to +858C Ambient Temperature Range
Ultrasmall Thermally Enhanced Chip-on-Lead™
SOT-23-6 6-Lead Package
ADP3330 Typical Application
Cellular Telephones
Notebook, Palmtop Computers
Battery Powered Systems
PCMCIA Regulator
Bar Code Scanners
Camcorders, Cameras
Notebook, Palmtop Computers
Battery Powered Systems
PCMCIA Regulator
Bar Code Scanners
Camcorders, Cameras

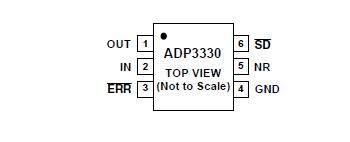

ADP3330 Connection Diagram
PIN FUNCTION DESCRIPTIONS |
||
| Pin | Name | Function |
| 1 | OUT | Output of the Regulator. Bypass to ground with a 0.47 mF or larger capacitor. |
| 2 | IN | Regulator Input. |
| 3 | ERR | Output that goes low to indicate that the output is about to go out of regulation. |
| 4 | GND | Ground Pin |
| 5 | NR | Noise Reduction Pin. Used for further reduction of output noise (see text for detail). No connection if not used. |
| 6 | SD | Active Low Shutdown Pin.Connect to ground to disable the regulator output. When shutdown is not used, this pin should be connected to the input pin. |
