MFG:N/A Package Cooled:05+ D/C:4000
MFG: N/A
Package Cooled: 05+
D/C: 4000

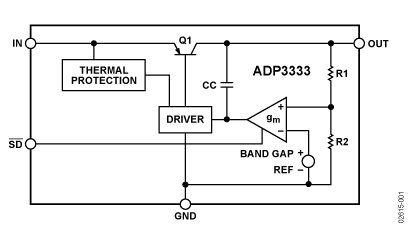

Description: ADP3333 is a member of the ADP333x family of precision low dropout anyCAP voltage regulators. Pin-comp...
ADP3333 is a member of the ADP333x family of precision low dropout anyCAP voltage regulators. Pin-compatible with the MAX8860, the ADP3333 operates with a wider input voltage range of 2.6 V to 12 V and delivers a load current up to 300 mA. ADP3333 stands out from other conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages over its competition. Its patented design requires only a 1.0 F output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. ADP3333 achieves exceptional accuracy of ±0.8% at room temperature and ±1.8% over temperature, line and load variations. The dropout voltage of ADP3333 is only 140 mV (typical) at 300 mA. This device also includes a safety current limit, thermal overload protection and a shutdown feature. In shutdown mode, the ground current is reduced to less than 1 A. The ADP3333 has ultralow quiescent current, 70 A (typ) in light load situations.
Input Supply Voltage . . . . . . . . . . . . . . . . . . . ................................0.3 V to +16 V
Shutdown Input Voltage . . . . . . . . . . . . . . . ................................. 0.3 V to +16 V
Power Dissipation . . . . . . . . . . . . . . . . . . .................................... Internally Limited
Operating Ambient Temperature Range . . . . ..............................40°C to +85°C
Operating Junction Temperature Range . . . ..............................40°C to +125°C
JA (4-layer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ................................. 158°C/W
JA (2-layer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ................................. 220°C/W
Storage Temperature Range . . . . . . . . . . . . ..............................65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . ...................................300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . .................................. . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . ................................... . 220°C
*This is a stress rating only; operation beyond these limits can cause the device to be permanently damaged.
High Accuracy Over Line and Load:±0.8% @25, ±1.8% Over Temperature Ultralow Dropout Voltage: 230 mV (Max) @ 300 mA Requires Only CO = 1.0F for Stability anyCAP = Stable with Any Type of Capacitor (Including MLCC) Current and Thermal Limiting Low Noise Low Shutdown Current: < 1A 2.6 V to 12 V Supply Range 40 to +85Ambient Temperature Range Ultrasmall 8-Lead MSOP Package
Cellular Phones PCMCIA Cards Personal Digital Assistants (PDAs) DSP/ASIC Supplies
ADP3333
PDF/DataSheet Download
