Purchase ADP3339, In-stock ADP3339 From SeekIC.
Part Number: ADP3339
Description: The ADP3339 is a member of the ADP33xx family of precision low dropout anyCAP voltage regulators. The ADP3339 oper- ate...
- Table of contents:
ADP3339
-
Suppliers
DataSheet
General Description

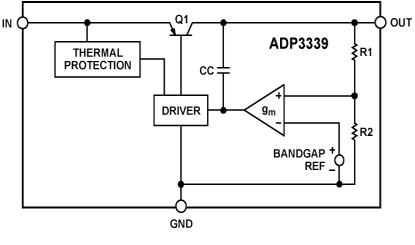

ADP3339 General Description
The ADP3339 is a member of the ADP33xx family of precision low dropout anyCAP voltage regulators. The ADP3339 oper- ates with an input voltage range of 2.8 V to 6 V and delivers a load current up to 1.5 A. The ADP3339 stands out from the conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages and higher output current than its competition. Its patented design requires only a 1.0 µF output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3339 achieves exceptional accuracy of ±0.9% at room temperature and ±1.5% over temperature, line and load varia- tions. The dropout voltage of the ADP3339 is only 230 mV (typical) at 1.5 A. This device also includes a safety current limit and thermal overload protection. The ADP3339 has ultralow quiescent current 130 µA (typical) in light load situations.

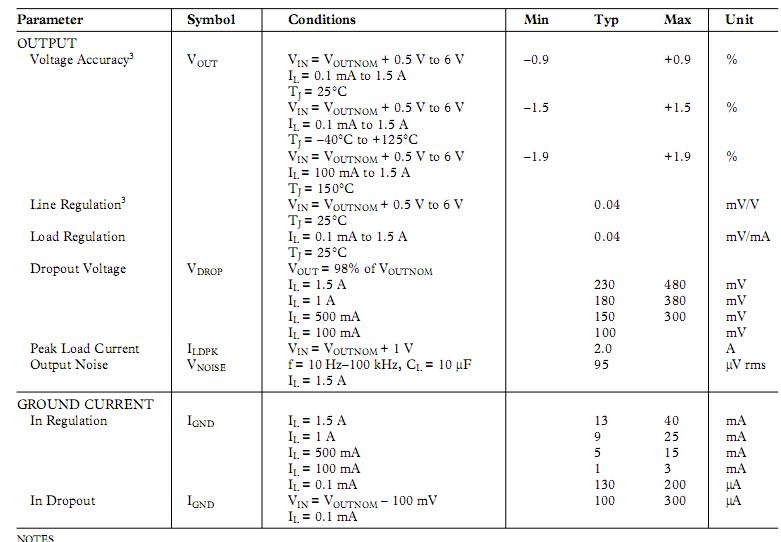

ADP3339 Features
High Accuracy Over Line and Load: ±0.9% @ 25, ±1.5% Over Temperature
Ultralow Dropout Voltage: 230 mV (Typ) @ 1.5 A
Requires Only CO = 1.0 F for Stability
anyCAP = Stable with Any Type of Capacitor (Including MLCC)
Current and Thermal Limiting
Low Noise
2.8 V to 6 V Supply Range
40 to +85 Ambient Temperature Range
SOT-223 Package
APPLICATIONS
Notebook, Palmtop Computers
SCSI Terminators
Battery-Powered Systems
PCMCIA Regulator
Bar Code Scanners
Camcorders, Cameras
Ultralow Dropout Voltage: 230 mV (Typ) @ 1.5 A
Requires Only CO = 1.0 F for Stability
anyCAP = Stable with Any Type of Capacitor (Including MLCC)
Current and Thermal Limiting
Low Noise
2.8 V to 6 V Supply Range
40 to +85 Ambient Temperature Range
SOT-223 Package
APPLICATIONS
Notebook, Palmtop Computers
SCSI Terminators
Battery-Powered Systems
PCMCIA Regulator
Bar Code Scanners
Camcorders, Cameras
ADP3339
