Purchase ADS1254, In-stock ADS1254 From SeekIC.
Part Number: ADS1254
Description: The ADS1254 is a precision, wide dynamic range, deltasigma, Analog-to-Digital (A/D) converter with 24-...
- Table of contents:
ADS1254
-
Suppliers
DataSheet
General Description
ADS1254 General Description
The ADS1254 is a precision, wide dynamic range, deltasigma, Analog-to-Digital (A/D) converter with 24-bit resolution. The delta-sigma architecture is used for wide dynamic range and to ensure 24 bits of no missing codes performance. An effective resolution of 19 bits (1.8ppm of rms noise) is achieved for conversion rates up to 20kHz.
The ADS1254 is designed for high-resolution measurement applications in cardiac diagnostics, smart transmitters, industrial process control, weight scales, chromatography, and portable instrumentation. The converter includes a flexible, two-wire synchronous serial interface for low-cost isolation.
The ADS1254 is a multi-channel converter and is offered in an SSOP-20 package.
ADS1254 Maximum Ratings
Analog Input: Current (Momentary) ............................................ ±100mA
(Continuous) ............................................... ±10mA
Voltage ................................... GND 0.3V to VDD + 0.3V
AVDD to AGND ....................................................................... 0.3V to 6V
DVDD to AVDD .........................................................................6V to +6V
DVDD to DGND ....................................................................... 0.3V to 6V
VREF Voltage to AGND ............................................. 0.3V to VDD + 0.3V
Digital Input Voltage to DGND ................................. 0.3V to VDD + 0.3V
Digital Output Voltage to DGND .............................. 0.3V to VDD + 0.3V
Lead Temperature (soldering, 10s) .............................................. +300°C
Power Dissipation (any package) ................................................. 500mW
(Continuous) ............................................... ±10mA
Voltage ................................... GND 0.3V to VDD + 0.3V
AVDD to AGND ....................................................................... 0.3V to 6V
DVDD to AVDD .........................................................................6V to +6V
DVDD to DGND ....................................................................... 0.3V to 6V
VREF Voltage to AGND ............................................. 0.3V to VDD + 0.3V
Digital Input Voltage to DGND ................................. 0.3V to VDD + 0.3V
Digital Output Voltage to DGND .............................. 0.3V to VDD + 0.3V
Lead Temperature (soldering, 10s) .............................................. +300°C
Power Dissipation (any package) ................................................. 500mW
ADS1254 Features
` 24 BITS-NO MISSING CODES
` 19 BITS EFFECTIVE RESOLUTION UP TO 20kHz DATA RATE
` LOW NOISE: 1.8ppm
` FOUR DIFFERENTIAL INPUTS
` INL: 15ppm (max)
` EXTERNAL REFERENCE (0.5V to 5V)
` POWER-DOWN MODE
` SYNC MODE
` LOW POWER: 4mW at 20kHz
` SEPARATE DIGITAL INTERFACE SUPPLY 1.8V to 3.6V
` 19 BITS EFFECTIVE RESOLUTION UP TO 20kHz DATA RATE
` LOW NOISE: 1.8ppm
` FOUR DIFFERENTIAL INPUTS
` INL: 15ppm (max)
` EXTERNAL REFERENCE (0.5V to 5V)
` POWER-DOWN MODE
` SYNC MODE
` LOW POWER: 4mW at 20kHz
` SEPARATE DIGITAL INTERFACE SUPPLY 1.8V to 3.6V
ADS1254 Typical Application
· CARDIAC DIAGNOSTICS
· DIRECT THERMOCOUPLE INTERFACES
· BLOOD ANALYSIS
· INFRARED PYROMETERS
· LIQUID/GAS CHROMATOGRAPHY
· PRECISION PROCESS CONTROL
· DIRECT THERMOCOUPLE INTERFACES
· BLOOD ANALYSIS
· INFRARED PYROMETERS
· LIQUID/GAS CHROMATOGRAPHY
· PRECISION PROCESS CONTROL

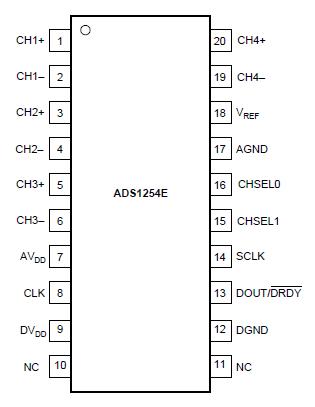

ADS1254 Connection Diagram
