Description: The ADS1286 is a 12-bit, 20kHz analog-to-digital converter with a differential input and sample and ho...
- Table of contents:
ADS1286PK
-
Suppliers
DataSheet
General Description
ADS1286PK General Description
The ADS1286 is a 12-bit, 20kHz analog-to-digital converter with a differential input and sample and hold amplifier and consumes only 250mA of supply current. The ADS1286 offers an SPI and SSI compatible serial interface for communications over a two or three wire interface. The combination of a serial two wire interface and micropower consumption makes the ADS1286 ideal for remote applications and for those requiring isolation. The ADS1286 is available in a 8-pin plastic mini DIP and a 8-lead SOIC.
ADS1286PK Maximum Ratings
+VCC ..................................................................................................... +6V
Analog Input ....................................................... 0.3V to (+VCC + 300mV)
Logic Input ......................................................... 0.3V to (+VCC + 300mV)
Case Temperature ......................................................................... +100°C
Junction Temperature .................................................................... +150°C
Storage Temperature ..................................................................... +125°C
External Reference Voltage ................................................................ +5.5V
Analog Input ....................................................... 0.3V to (+VCC + 300mV)
Logic Input ......................................................... 0.3V to (+VCC + 300mV)
Case Temperature ......................................................................... +100°C
Junction Temperature .................................................................... +150°C
Storage Temperature ..................................................................... +125°C
External Reference Voltage ................................................................ +5.5V
ADS1286PK Features
`SERIAL INTERFACE
`GUARANTEED NO MISSING CODES
`20kHz SAMPLING RATE
`LOW SUPPLY CURRENT: 250A
`GUARANTEED NO MISSING CODES
`20kHz SAMPLING RATE
`LOW SUPPLY CURRENT: 250A
ADS1286PK Typical Application
·REMOTE DATA ACQUISITION
·ISOLATED DATA ACQUISITION
·TRANSDUCER INTERFACE
·BATTERY OPERATED SYSTEMS
·ISOLATED DATA ACQUISITION
·TRANSDUCER INTERFACE
·BATTERY OPERATED SYSTEMS

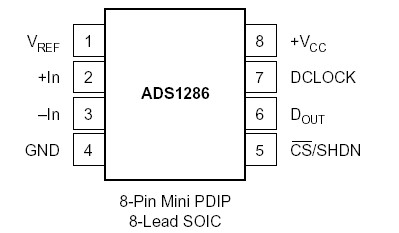

ADS1286PK Connection Diagram
