Part Number: ADS6632A4A
Description: The ADS6632A4A are four-bank Synchronous DRAMs organized as 524,288 words x 32 bits x 4 banks, Synchro...
- Table of contents:
ADS6632A4A
-
Suppliers
DataSheet
General Description
ADS6632A4A General Description
The ADS6632A4A are four-bank Synchronous DRAMs organized as 524,288 words x 32 bits x 4 banks, Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth high performance memory system applications
ADS6632A4A Maximum Ratings
|
Parameter |
Symbol | Value |
Unit |
| Voltage on any pin relative to Vss Voltage on VDD supply relative to Vss Storage temperature Power dissipation Short circuit current |
VIN, Vout VDD, VDDQ TSTG PD IOS |
-1.0 ~ 4.6 -1.0 ~ 4.6 -55 ~ +150 1 50 |
V V W mA |
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability.
ADS6632A4A Features
•JEDEC standard LVTTL 3.3V power supply
•MRS Cycle with address key programs
-CAS Latency (2 & 3)
-Burst Length (1,2,3,8,& full page)
-Burst Type (sequential & Interleave)
•4 banks operation
•All inputs are sampled at the positive edge of
the system clock
•Burst Read single write operation
•Auto & Self refresh
•4096 refresh cycle
•DQM for masking
•Package:86-pins 400 mil TSOP-Type II
•MRS Cycle with address key programs
-CAS Latency (2 & 3)
-Burst Length (1,2,3,8,& full page)
-Burst Type (sequential & Interleave)
•4 banks operation
•All inputs are sampled at the positive edge of
the system clock
•Burst Read single write operation
•Auto & Self refresh
•4096 refresh cycle
•DQM for masking
•Package:86-pins 400 mil TSOP-Type II

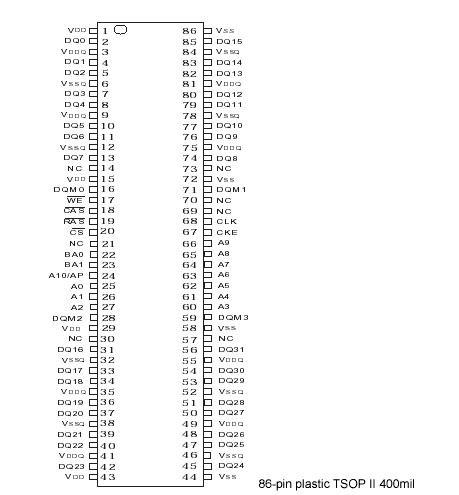

ADS6632A4A Connection Diagram
