Part Number: ADS7805



MFG: SMD

Package Cooled: TI

D/C: 04+

Description: The ADS7805 is a complete 16-bit sampling A/D using state-of-the-art CMOS structures. It contains a co...


Urgent Purchase

ADS7805 General Description


The ADS7805 is a complete 16-bit sampling A/D using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, SAR A/D with S/H, reference, clock, interface for microprocessor use, and three-state output drivers.

The ADS7805 is specified at a 100kHz sampling rate, and guaranteed over the full temperature range. Lasertrimmed scaling resistors provide an industrystandard ±10V input range, while the innovative design allows operation from a single +5V supply, with power dissipation under 100mW.

The 28-pin ADS7805 is available in a plastic 0.3" DIP and in an SOIC, both fully specified for operation over the industrial 25°C to +85°C range.

ADS7805 Maximum Ratings

Analog Inputs: VIN .......................................................................... ±25V
                        CAP .................................... +VANA +0.3V to AGND2 0.3V
                        REF ..........................................Indefinite Short to AGND2,
                                                                           Momentary Short to VANA
Ground Voltage Differences: DGND,  AGND1, AGND2 ...................... ±0.3V
VANA ......................................................................................................7V
VDIG to VANA ....................................................................................+0.3V
VDIG ..................................................................................................... 7V
Digital Inputs ...........................................................0.3V to +VDIG +0.3V
Maximum Junction Temperature ................................................... +165°C
Internal Power Dissipation ............................................................825mW
Lead Temperature (soldering, 10s) ...............................................+300°C

ADS7805 Features

100kHz min SAMPLING RATE
STANDARD ±10V INPUT RANGE
86dB min SINAD WITH 20kHz INPUT
±3.0 LSB max INL
DNL: 16-bits "No Missing Codes"
SINGLE +5V SUPPLY OPERATION
PIN-COMPATIBLE WITH 12-BIT ADS7804
USES INTERNAL OR EXTERNAL REFERENCE
FULL PARALLEL DATA OUTPUT
100mW max POWER DISSIPATION
28-PIN 0.3" PLASTIC DIP AND SOIC

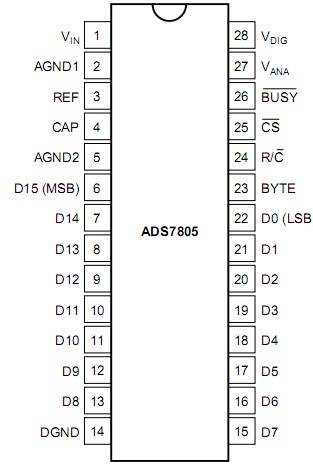

ADS7805 Connection Diagram

ADS7805 Connection Diagram

ADS7805 datasheet

ADS7805
PDF/DataSheet Download

Find ADS7805 Suppliers
