General Description
ADS7811 General Description
The ADS7811 is a complete 16-bit sampling analogto- digital (A/D) converter featuring excellent AC performance and a 250kHz throughput rate. The design includes a 16-bit capacitor-based SAR A/D converter with an inherent sample and hold (S/H), a precision reference, and an internal clock. Spuriousfree dynamic range with a 100kHz full-scale sinewave input is typically greater than 100dB. The ±2.5V input range allows development of precision systems using only ±5V supplies.
The converter is available in a 28-lead SOIC package specified for operation over the industrial 25°C to +85°C temperature range.
ADS7811 Maximum Ratings
Analog Inputs: VIN ................................ VS 0.3V to +VS + 0.3V
REF ........................................ 0.3V to +VS + 0.3V
CAP .................................... Indefinite Short to GND
Momentary Short to +VS
+VS ............................................................................................ 7V
VS ........................................................................................ 7V
Digital Inputs ................................................ 0.3V to +VS + 0.3V
Maximum Junction Temperature ...................................... +165°C
Internal Power Dissipation ............................................... 825mW
Lead Temperature (soldering, 10s) ................................ +300°C
REF ........................................ 0.3V to +VS + 0.3V
CAP .................................... Indefinite Short to GND
Momentary Short to +VS
+VS ............................................................................................ 7V
VS ........................................................................................ 7V
Digital Inputs ................................................ 0.3V to +VS + 0.3V
Maximum Junction Temperature ...................................... +165°C
Internal Power Dissipation ............................................... 825mW
Lead Temperature (soldering, 10s) ................................ +300°C
ADS7811 Features
·250kHz SAMPLING RATE
·COMPLETE WITH S/H, REF, CLOCK, ETC.
·96dB min SFDR WITH 100kHz INPUT
·84dB min SINAD
·±2.5V INPUT RANGE
·28-LEAD SOIC
·COMPLETE WITH S/H, REF, CLOCK, ETC.
·96dB min SFDR WITH 100kHz INPUT
·84dB min SINAD
·±2.5V INPUT RANGE
·28-LEAD SOIC
ADS7811 Typical Application
·WIRELESS BASE STATIONS
·SPECTRUM ANALYSIS
·IMAGING SYSTEMS
·DATA ACQUISITION
·SPECTRUM ANALYSIS
·IMAGING SYSTEMS
·DATA ACQUISITION

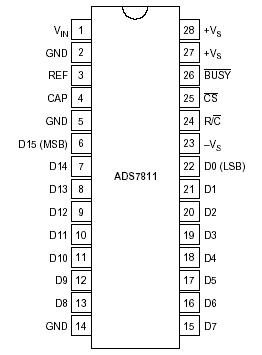

ADS7811 Connection Diagram
ADS7811
PDF/DataSheet Download
- Datasheet: ADS7811
- File Size: 190836 KB
- Manufacturer: Burr-Brown
- Click here to Download
