Purchase ADS7817, In-stock ADS7817 From SeekIC.
Part Number: ADS7817
Description: The ADS7817 is a 12-bit, 200kHz sampling analogto- digital converter that features a high impedance fu...
- Table of contents:
ADS7817
-
Suppliers
DataSheet
General Description
ADS7817 General Description
The ADS7817 is a 12-bit, 200kHz sampling analogto- digital converter that features a high impedance fully differential analog input. The reference voltage can be varied from 100mV to 2.5V, with a corresponding input-referred resolution between 49mV and 1.22mV.
The differential input, low power, automatic power down, and small size make the ADS7817 ideal for direct connection to transducers in battery operated systems, remote data acquisition, or multi-channel applications. The ADS7817 is available in an 8-pin plastic mini-DIP, an 8-lead SOIC, or an 8-lead MSOP package.
ADS7817 Maximum Ratings
+VCC .................................................................................................... +6V
Analog Input ..........................................................0.3V to (+VCC + 0.3V)
Logic Input ........................................................... 0.3V to (+VCC + 0.3V)
Case Temperature ....................................................................... +100°C
Junction Temperature .................................................................. +150°C
Storage Temperature .................................................................. +125°C
External Reference Voltage .............................................................. +5.5V
NOTE: (1) Stresses above these ratings may permanently damage the device.
Analog Input ..........................................................0.3V to (+VCC + 0.3V)
Logic Input ........................................................... 0.3V to (+VCC + 0.3V)
Case Temperature ....................................................................... +100°C
Junction Temperature .................................................................. +150°C
Storage Temperature .................................................................. +125°C
External Reference Voltage .............................................................. +5.5V
NOTE: (1) Stresses above these ratings may permanently damage the device.
ADS7817 Features
·BIPOLAR INPUT RANGE
·TRUE DIFFERENTIAL INPUT
·200kHz SAMPLING RATE
·MICRO POWER: 2.3mW at 200kHz
·POWER DOWN: 3mA Max
·AVAILABLE IN 8-LEAD MSOP PACKAGE
·SERIAL INTERFACE
·AC COMMON-MODE REJECTION
·TRUE DIFFERENTIAL INPUT
·200kHz SAMPLING RATE
·MICRO POWER: 2.3mW at 200kHz
·POWER DOWN: 3mA Max
·AVAILABLE IN 8-LEAD MSOP PACKAGE
·SERIAL INTERFACE
·AC COMMON-MODE REJECTION
ADS7817 Typical Application
·TRANSDUCER INTERFACE
·BATTERY OPERATED SYSTEMS
·REMOTE DATA ACQUISITION
·ISOLATED DATA ACQUISITION
·AC MOTOR CONTROL
·BATTERY OPERATED SYSTEMS
·REMOTE DATA ACQUISITION
·ISOLATED DATA ACQUISITION
·AC MOTOR CONTROL

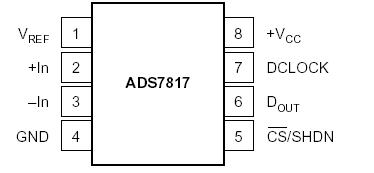

ADS7817 Connection Diagram
ADS7817
PDF/DataSheet Download
- Datasheet: ADS7817
- File Size: 259224 KB
- Manufacturer: Burr-Brown
- Click here to Download
