Purchase ADS7825, In-stock ADS7825 From SeekIC.
Part Number: ADS7825
Description: The ADS7825 can acquire and convert 16 bits to within ±2.0 LSB in 25ms max while consuming only 50mW m...
- Table of contents:
ADS7825
-
Suppliers
DataSheet
General Description
ADS7825 General Description
The ADS7825 can acquire and convert 16 bits to within ±2.0 LSB in 25ms max while consuming only 50mW max. Laser-trimmed scaling resistors provide the standard industrial ±10V input range and channelto-channel matching of ±0.1%. The ADS7825 is a low-power 16-bit sampling A/D with a four channel input multiplexer, S/H, clock, reference, and a parallel/serial microprocessor interface. It can be configured in a continuous conversion mode to sequentially digitize all four channels. The 28-pin ADS7825 is available in a plastic 0.3" DIP and in a SOIC, both fully specified for operation over the industrial 40°C to +85°C range.
ADS7825 Maximum Ratings
Analog Inputs: AIN0, AIN1, AIN2, AIN3 .......................................... ±15V
REF ................................... (AGND2 0.3V) to (VS + 0.3V)
CAP ....................................... Indefinite Short to AGND2,
Momentary Short to VS
VS1 and VS2 to AGND2 ....................................................................... 7V
VS1 to VS2 ......................................................................................±0.3V
Difference between AGND1, AGND2 and DGND ............................. ±0.3V
Digital Inputs and Outputs .......................................0.3V to (VS + 0.3V)
Maximum Junction Temperature ................................................... 150°C
Internal Power Dissipation .......................................................... 825mW
Lead Temperature (soldering, 10s) ..............................................+300°C
Maximum Input Current to Any Pin ............................................... 100mA
REF ................................... (AGND2 0.3V) to (VS + 0.3V)
CAP ....................................... Indefinite Short to AGND2,
Momentary Short to VS
VS1 and VS2 to AGND2 ....................................................................... 7V
VS1 to VS2 ......................................................................................±0.3V
Difference between AGND1, AGND2 and DGND ............................. ±0.3V
Digital Inputs and Outputs .......................................0.3V to (VS + 0.3V)
Maximum Junction Temperature ................................................... 150°C
Internal Power Dissipation .......................................................... 825mW
Lead Temperature (soldering, 10s) ..............................................+300°C
Maximum Input Current to Any Pin ............................................... 100mA
ADS7825 Features
` 25s max SAMPLING AND CONVERSION
` SINGLE +5V SUPPLY OPERATION
` PIN-COMPATIBLE WITH 12-BIT ADS7824
` PARALLEL AND SERIAL DATA OUTPUT
` 28-PIN 0.3" PLASTIC DIP AND SOIC
` ±2.0 LSB max INL
` 50mW max POWER DISSIPATION
` 50W POWER DOWN MODE
` ±10V INPUT RANGE, FOUR CHANNEL MULTIPLEXER
` CONTINUOUS CONVERSION MODE
` SINGLE +5V SUPPLY OPERATION
` PIN-COMPATIBLE WITH 12-BIT ADS7824
` PARALLEL AND SERIAL DATA OUTPUT
` 28-PIN 0.3" PLASTIC DIP AND SOIC
` ±2.0 LSB max INL
` 50mW max POWER DISSIPATION
` 50W POWER DOWN MODE
` ±10V INPUT RANGE, FOUR CHANNEL MULTIPLEXER
` CONTINUOUS CONVERSION MODE

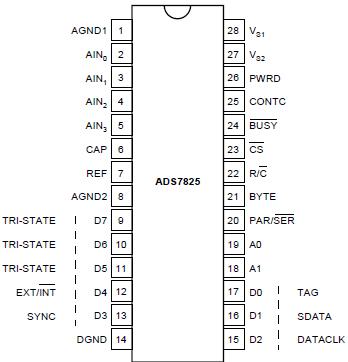

ADS7825 Connection Diagram
ADS7825
