Part Number: ADS7832



MFG: BB

Package Cooled: 04+

D/C: 1

Description: The ADS7832 is a monolithic CMOS 12-bit analogto- digital converter with internal sample/hold and four...


Urgent Purchase

ADS7832 General Description


The ADS7832 is a monolithic CMOS 12-bit analogto- digital converter with internal sample/hold and fourchannel multiplexer. It is designed and tested for full dynamic performance with input signals to 50kHz. The 5V single-supply requirements and standard CS, RD, and WR control signals make the part easy to use in microprocessor applications. Conversion results are available in two bytes through an 8-bit three-state output bus.

The ADS7832 is available in a 28-pin plastic DIP and 28-lead PLCC, fully specified for operation over the industrial 40°C to +85°C temperature range.

ADS7832 Maximum Ratings

VA to Analog Ground ......................................................................... 7V
VD to Digital Ground .......................................................................... 7V
VA to VD ....................................................................................... ±0.3V
Analog Ground to Digital Ground ................................................. ±0.3V
Control Inputs to Digital Ground ............................. 0.3V to VD + 0.3V
Analog Input Voltage to Analog Ground ................. 0.3V to VA + 0.3V
Maximum Junction Temperature ................................................ 150°C
Internal Power Dissipation ........................................................ 875mW
Lead Temperature (soldering, 10s) ......................................... +260°C
(soldering, 3s) .......................................................................... +360°C
Thermal Resistance, JA ........................................................... 75°C/W
Maximum Input Current to Any Pin ............................................. ±50mA
ESD: Human Body Model .................................................................. 1kV

ADS7832 Features

·PIN COMPATIBLE TO ADC7802 AND ADS7803
·SINGLE SUPPLY: +5V OR +3.3V
·LOW POWER: 14mW plus Power Down
·SIGNAL-TO-(NOISE + DISTORTION)
RATIO OVER TEMPERATURE:
69dB min with fIN = 1kHz
66dB min with fIN = 50kHz
·FAST CONVERSION TIME: 8.5ms Including Acquisition (117kHz Sampling Rate)
·FOUR-CHANNEl INPUT MULTIPLEXER
·AUTOCAL: No offset or Gain Adjust Required

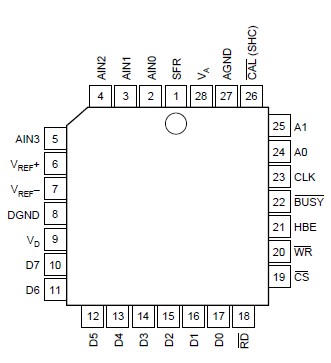

ADS7832 Connection Diagram

ADS7832 Connection Diagram

ADS7832 datasheet

ADS7832
PDF/DataSheet Download
