MFG:Texas Instruments  Category:Integrated Circuits (ICs)

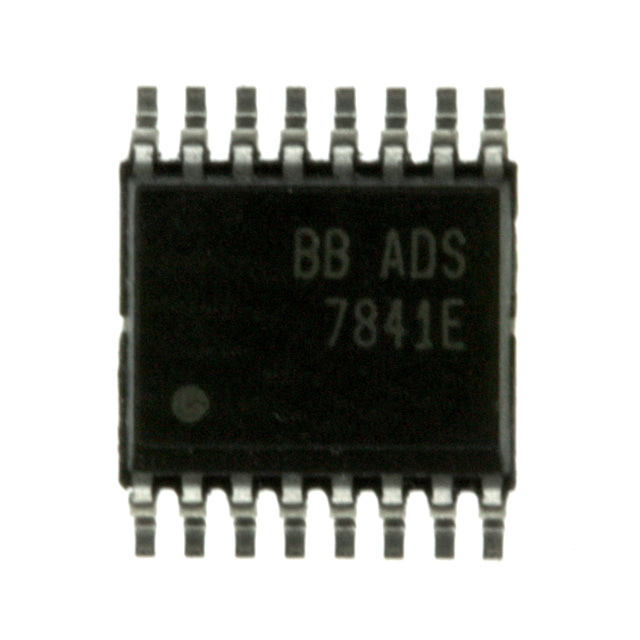

ADS7841EB/2K5 Product Image

ADS Series Datasheet download

Five Points

Part Number: ADS7841EB/2K5

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC 12BIT 4CHAN SERIAL A/D 16QSOP

Price Break

2500

Unit Price

3.53400

Extended Price

8835.00

(All prices are in USD) Prices for reference only
Urgent Purchase

ADS7841EB/2K5 General Description

IC 12BIT 4CHAN SERIAL A/D 16QSOP

ADS7841EB/2K5 Parameters

Technical/Catalog InformationADS7841EB/2K5
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Bits12
Package / Case16-QSOP (SSOP)
Data InterfaceSerial
PackagingTape & Reel (TR)
Sampling Rate (Per Second)200k
Operating Temperature-40°C ~ 85°C
Voltage Supply SourceSingle
Number of Inputs and Type4 Single-Ended, Unipolar; 2 Differential, Unipolar
Number of Converters1
Power Dissipation (Max)4.5mW
Drawing Number296; 4073301-2; DBQ; 16
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADS7841EB 2K5
