Part Number: ADS7842
Description: The ADS7842 is a complete, 4-channel, 12-bit analogto-digital converter (ADC). It contains a 12-bit, c...
- Table of contents:
ADS7842
-
Suppliers
DataSheet
General Description
ADS7842 General Description
The ADS7842 is a complete, 4-channel, 12-bit analogto-digital converter (ADC). It contains a 12-bit, capacitor-based, SAR A/D with a sample-and-hold amplifier, interface for microprocessor use and parallel, three-state output drivers. The ADS7842 is specified at a 200kHz sampling rate while dissipating only 2mW of power. The reference voltage can be varied from 100mV to VCC with a corresponding LSB resolution from 24µV to 1.22mV. The ADS7842 is guaranteed down to 2.7V operation.
Low power, high speed and an on-board multiplexer make the ADS7842 ideal for battery-operated systems such as portable, multi-channel dataloggers and measurement equipment. The ADS7842 is available in a SSOP-28 package and is guaranteed over the 40°C to +85°C temperature range.
ADS7842 Maximum Ratings
+VCC to GND ........................................................................0.3V to +6V
Analog Inputs to GND ............................................ 0.3V to +VCC + 0.3V
Digital Inputs to GND ...........................................................0.3V to +6V
Power Dissipation .........................................................................250mW
Maximum Junction Temperature ...................................................+150°C
Operating Temperature Range ........................................40°C to +85°C
Storage Temperature Range .........................................65°C to +150°C
Lead Temperature (soldering, 10s) ..............................................+300°C
Analog Inputs to GND ............................................ 0.3V to +VCC + 0.3V
Digital Inputs to GND ...........................................................0.3V to +6V
Power Dissipation .........................................................................250mW
Maximum Junction Temperature ...................................................+150°C
Operating Temperature Range ........................................40°C to +85°C
Storage Temperature Range .........................................65°C to +150°C
Lead Temperature (soldering, 10s) ..............................................+300°C
ADS7842 Features
SINGLE SUPPLY: 2.7V to 5V
4-CHANNEL INPUT MULTIPLEXER
UP TO 200kHz SAMPLING RATE
FULL 12-BIT PARALLEL INTERFACE
±1 LSB INL AND DNL
GUARANTEED NO MISSING CODES
72dB SINAD
LOW POWER: 2mW
SSOP-28 PACKAGE
4-CHANNEL INPUT MULTIPLEXER
UP TO 200kHz SAMPLING RATE
FULL 12-BIT PARALLEL INTERFACE
±1 LSB INL AND DNL
GUARANTEED NO MISSING CODES
72dB SINAD
LOW POWER: 2mW
SSOP-28 PACKAGE
ADS7842 Typical Application
DATA ACQUISITION
TEST AND MEASUREMENT
INDUSTRIAL PROCESS CONTROL
MEDICAL INSTRUMENTS
LABORATORY EQUIPMENT
TEST AND MEASUREMENT
INDUSTRIAL PROCESS CONTROL
MEDICAL INSTRUMENTS
LABORATORY EQUIPMENT

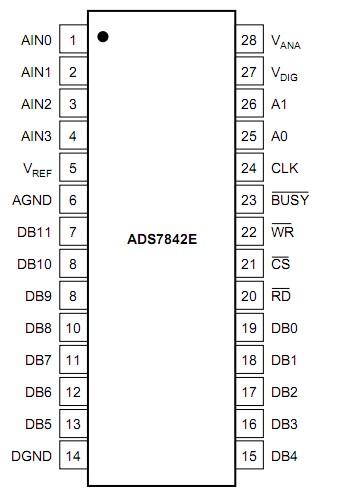

ADS7842 Connection Diagram
ADS7842
PDF/DataSheet Download
- Datasheet: ADS7842
- File Size: 199509 KB
- Manufacturer: Burr-Brown
- Click here to Download
- ·ADS1100
- BURR-BROWN [Burr-Brown Corporation]
- Self-Calibrating, 16-Bit ANALOG-TO-DIGITAL CONVERTER
- 189503 KB
- ·ADS1100A7IDBVR
- BURR-BROWN
- 1.2-V, 12-/10-/8-BIT, 200-KSPS/100-KSPS, MICRO-POWER, MINIATURE ANALOG-TO-DIGITAL CONVERTER WITH SERIAL INTERFACE
- 288993 KB
- ·ADS1100A7IDBVT
- BURR-BROWN
- 1.2-V, 12-/10-/8-BIT, 200-KSPS/100-KSPS, MICRO-POWER, MINIATURE ANALOG-TO-DIGITAL CONVERTER WITH SERIAL INTERFACE
- 288993 KB
- ·ADS1100IDBVR
- BURR-BROWN [Burr-Brown Corporation]
- Self-Calibrating, 16-Bit ANALOG-TO-DIGITAL CONVERTER
- 189503 KB
- ·ADS1100IDBVT
- BURR-BROWN [Burr-Brown Corporation]
- Self-Calibrating, 16-Bit ANALOG-TO-DIGITAL CONVERTER
- 189503 KB
- ·ADS1110
- TI [Texas Instruments]
- 16-Bit ANALOG-TO-DIGITAL CONVERTER with Onboard Reference
- 532959 KB
- ·ADS1110A0IDBVR
- TI [Texas Instruments]
- 16-Bit ANALOG-TO-DIGITAL CONVERTER with Onboard Reference
- 532959 KB
- ·ADS1110A0IDBVT
- TI [Texas Instruments]
- 16-Bit ANALOG-TO-DIGITAL CONVERTER with Onboard Reference
- 532959 KB
ADS7842 Relative Products
ADS7841PBG4
ADS7841PBG4
ADS7841PB
IC 12-BIT 4-CH SER A/D 16-DIP
-
ADS7841P
IC 12-BIT A/D 4CH SERIAL 16-DIP
ADS7841ESG4
ADS7841ESG4
ADS7841EB/2K5
IC 12BIT 4CHAN SERIAL A/D 16QSOP

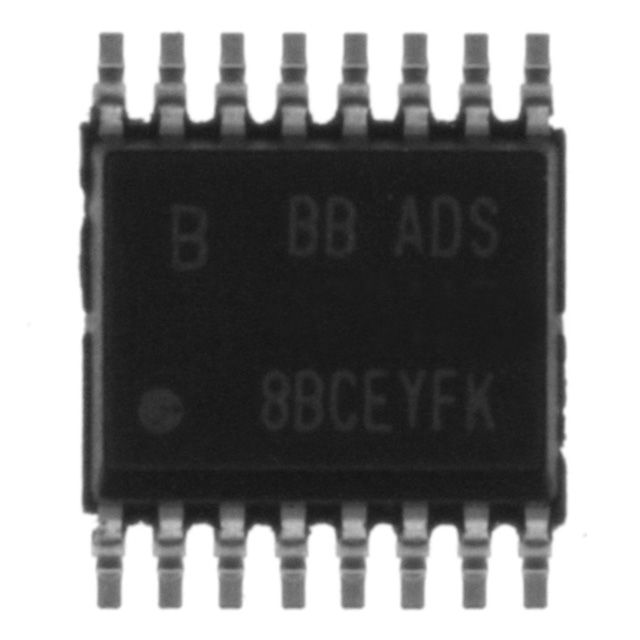

ADS7841EB
