Purchase ADS7861, In-stock ADS7861 From SeekIC.
Part Number: ADS7861
Description: The ADS7861 is a dual, 12-bit, 500kHz, analog-todigital converter with 4 fully differential input chan...
- Table of contents:
ADS7861
-
Suppliers
DataSheet
General Description
ADS7861 General Description
The ADS7861 is a dual, 12-bit, 500kHz, analog-todigital converter with 4 fully differential input channels grouped into two pairs for high speed, simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHzwhich is important in high noise environments.
The ADS7861 offers a high speed, dual serial interface and control inputs to minimize software overhead. The output data for each channel is available as a 12-bit word. The ADS7861 is offered in a 24-lead SSOP package and is fully specified over the 40°C to +85°Coperating range.
ADS7861 Maximum Ratings
Analog Inputs to AGND, Any Channel Input ........ ...0.3V to (+VD + 0.3V)
REFIN ..................................................................... 0.3V to (+VD + 0.3V)
Digital Inputs to DGND ........................................ .. 0.3V to (+VD + 0.3V)
Ground Voltage Differences: AGND, DGND ............ ....................... ±0.3V
+VD to AGND ......................... ...............................................0.3V to +6V
Power Dissipation .......................................................................... 325mW
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ......................................40°C to +85°C
Storage Temperature Range ....................................... 65°C to +150°C
Lead Temperature (soldering, 10s) .............................................. +300°C
REFIN ..................................................................... 0.3V to (+VD + 0.3V)
Digital Inputs to DGND ........................................ .. 0.3V to (+VD + 0.3V)
Ground Voltage Differences: AGND, DGND ............ ....................... ±0.3V
+VD to AGND ......................... ...............................................0.3V to +6V
Power Dissipation .......................................................................... 325mW
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ......................................40°C to +85°C
Storage Temperature Range ....................................... 65°C to +150°C
Lead Temperature (soldering, 10s) .............................................. +300°C
ADS7861 Features
* 4 INPUT CHANNELS
*FULLY DIFFERENTIAL INPUTS
* 2ms TOTAL THROUGHPUT PER CHANNEL
* GUARANTEED NO MISSING CODES
* 1MHz EFFECTIVE SAMPLING RATE
*LOW POWER: 40mW
* SSI SERIAL INTERFACE
*FULLY DIFFERENTIAL INPUTS
* 2ms TOTAL THROUGHPUT PER CHANNEL
* GUARANTEED NO MISSING CODES
* 1MHz EFFECTIVE SAMPLING RATE
*LOW POWER: 40mW
* SSI SERIAL INTERFACE
ADS7861 Typical Application
* MOTOR CONTROL
*MULTI-AXIS POSITIONING SYSTEMS
* 3-PHASE POWER CONTROL
*MULTI-AXIS POSITIONING SYSTEMS
* 3-PHASE POWER CONTROL

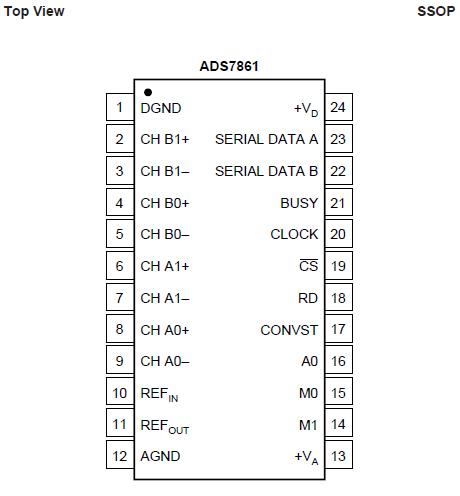

ADS7861 Connection Diagram
ADS7861
PDF/DataSheet Download
- Datasheet: ADS7861
- File Size: 231755 KB
- Manufacturer: Burr-Brown
- Click here to Download
