Part Number: ADS801



MFG: SOP

Package Cooled: BB

D/C: 2005+

Description: The ADS801 is a low power, monolithic 12-bit, 25MHz analog-to-digital converter utilizing a small geom...


Urgent Purchase

ADS801 General Description


The ADS801 is a low power, monolithic 12-bit, 25MHz analog-to-digital converter utilizing a small geometry CMOS process. This COMPLETE converter includes a 12-bit quantizer, wideband track/hold, reference, and three-state outputs. It operates from a single +5V power supply and can be configured to accept either single-ended or differential input signals.

The ADS801 employs digital error correction to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR and high oversampling capability give it the extra margin needed for telecommunications, instrumentation and video applications.

This high performance A/D converter is specified over temperature for AC and DC performance at a 25MHz sampling rate. The ADS820 is available in 28-lead SOIC and 28-lead SSOP packages.

ADS801 Maximum Ratings

+VS .................................................................................................... +6V
Analog Input ........................................................... 0V to (+VS + 300mV)
Logic Input .............................................................. 0V to (+VS + 300mV)
Case Temperature ..................................................................... +100°C
Junction Temperature ................................................................ +150°C
Storage Temperature ................................................................ +125°C
External Top Reference Voltage (REFT) .................................. +3.4V Max
External Bottom Reference Voltage (REFB) ............................. +1.1V Min
NOTE: Stresses above these ratings may permanently damage the device.

ADS801 Features

·NO MISSING CODES
·LOW POWER: 270mW
·INTERNAL REFERENCE
·WIDEBAND TRACK/HOLD: 65MHz
·SINGLE +5V SUPPLY
·PACKAGE: 28-Lead SOIC and 28-Lead SSOP

ADS801 Typical Application

·IF AND BASEBAND DIGITIZATION
·DIGITAL COMMUNICATIONS
·TEST INSTRUMENTATION
·CCD IMAGING
   Copiers
   Scanners
   Cameras
·VIDEO DIGITIZING
·GAMMA CAMERAS

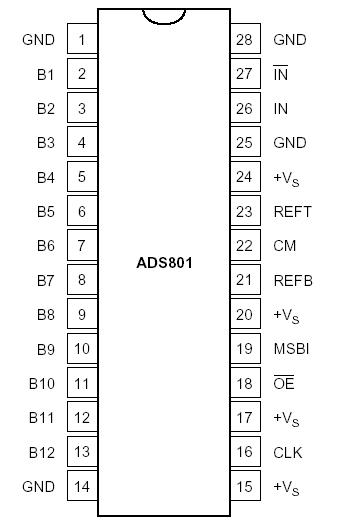

ADS801 Connection Diagram

ADS801 Connection Diagram

ADS801 datasheet

ADS801
PDF/DataSheet Download

Find ADS801 Suppliers
