Part Number: ADS820



MFG: BB

Package Cooled: SOP

D/C: 07/08+

Description: The ADS820 is a low power, monolithic 10-bit, 20MHz analog-to-digital converter utilizing a small geom...


Urgent Purchase

ADS820 General Description


The ADS820 is a low power, monolithic 10-bit, 20MHz analog-to-digital converter utilizing a small geometry CMOS process. This COMPLETE converter includes a 10-bit quantizer with internal track/hold, reference, and a power down feature. It operates from a single +5V power supply and can be configured to accept either differential or single-ended input signals.

The ADS820 employs digital error correction to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR and high oversampling capability give it the extra margin needed for telecommunications and video applications.

This high performance converter is specified for AC and DC performance at a 20MHz sampling rate. The ADS820 is available in 28-pin SOIC and SSOP packages.

ADS820 Maximum Ratings

+VS ......................................................................................................+6V
Analog Input ............................................................. 0V to (+VS + 300mV)
Logic Input ................................................................ 0V to (+VS + 300mV)
Case Temperature ......................................................................... +100
Junction Temperature ................................................................... +150
Storage Temperature ................................................................... +125
External Top Reference Voltage (REFT) .................................. +3.4V Max
External Bottom Reference Voltage (REFB) ..............................+1.1V Min

ADS820 Features

·NO MISSING CODES
·INTERNAL REFERENCE
· LOW DIFFERENTIAL LINEARITY ERROR: 0.2LSB
· LOW POWER: 195mW
· HIGH SNR: 60dB
· WIDEBAND TRACK/HOLD: 65MHz
·PACKAGES: 28-Pin SOIC and 28-PIN SSOP

ADS820 Typical Application

· SET-TOP BOXES
· CABLE MODEMS
·VIDEO DIGITIZING
·CCD IMAGING
Camcorders
Copiers
Scanners
Security Cameras
· IF AND BASEBAND DIGITIZATION

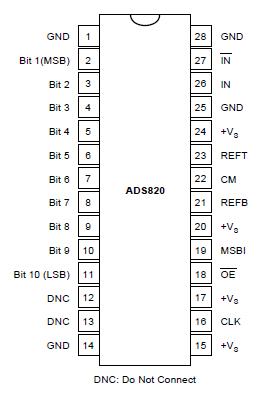

ADS820 Connection Diagram

ADS820 Connection Diagram
