Part Number: ADS821



MFG: SOP

Package Cooled: BB

D/C: 2005+

Description: The ADS821 is a low power, monolithic 10-bit, 40MHz analog-to-digital converter utilizing a small geom...


Urgent Purchase

ADS821 General Description


The ADS821 is a low power, monolithic 10-bit, 40MHz analog-to-digital converter utilizing a small geometry CMOS process. This COMPLETE converter includes a 10-bit quantizer with internal track/hold, reference, and a power down feature. It operates from a single +5V power supply and can be configured to accept either differential or single-ended input signals.

The ADS821 employs digital error correction to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR and high oversampling capability give it the extra margin needed for telecommunications and video applications.

This high performance converter is specified for AC and DC performance at a 40MHz sampling rate. The ADS821 is available in 28-pin SOIC and SSOP packages.

ADS821 Maximum Ratings

+VS ..................................................................................................... +6V
Analog Input ............................................................. 0V to (+VS + 300mV)
Logic Input ................................................................ 0V to (+VS + 300mV)
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .................................................................... +125
External Top Reference Voltage (REFT) ................................... +3.4V max
External Bottom Reference Voltage (REFB) .............................. +1.1V min
NOTE: Stresses above these ratings may permanently damage the device.

ADS821 Features

·NO MISSING CODES
· INTERNAL REFERENCE
· LOW POWER: 380mW
· HIGH SNR: 58dB
·INTERNAL TRACK/HOLD
· PACKAGE: 28-Pin SOIC and SSOP

ADS821 Typical Application

· VIDEO DIGITIZING
· ULTRASOUND IMAGING
· GAMMA CAMERAS
· SET-TOP BOXES
·CABLE MODEMS
· CCD IMAGING
Color Copiers
Scanners
Camcorders
Security Cameras
Fax Machines
·IF AND BASEBAND DIGITIZATION
·TEST INSTRUMENTATION

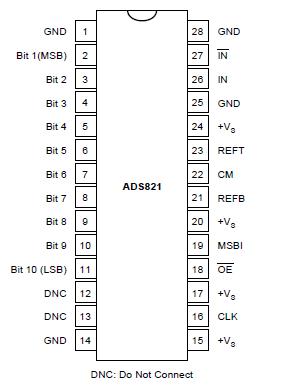

ADS821 Connection Diagram

ADS821 Connection Diagram

ADS821 datasheet

ADS821
PDF/DataSheet Download
