General Description
ADS8361 Maximum Ratings
Supply Voltage, AGND to AVDD ............................................. 0.3V to 7V
Supply Voltage, BGND to BVDD ............................................. 0.3V to 7V
Analog Input Voltage ................................. AGND 0.3V to AVDD + 0.3V
Reference Input Voltage ............................ AGND 0.3V to AVDD + 0.3V
Digital Input Voltage .................................. BGND 0.3V to BVDD + 0.3V
Ground Voltage Differences, AGND to BGND .................................. ±0.3V
Voltage Differences, BVDD to AGND ..................................... 0.3V to 7V
Input Current to Any Pin Except Supply ......................... 20mA to 20mA
Power Dissipation ....................................... See Dissipation Rating Table
Operating Virtual Junction Temperature Range, TJ ...... 40°C to 150°C
Operating Free-Air Temperature Range, TA .................. 40°C to 85°C
Storage Temperature Range, TSTG ............................. 65°C to 150°C
Lead Temperature 1.6mm (1/16 inch) from Case for 10s .............. 260°C
Supply Voltage, BGND to BVDD ............................................. 0.3V to 7V
Analog Input Voltage ................................. AGND 0.3V to AVDD + 0.3V
Reference Input Voltage ............................ AGND 0.3V to AVDD + 0.3V
Digital Input Voltage .................................. BGND 0.3V to BVDD + 0.3V
Ground Voltage Differences, AGND to BGND .................................. ±0.3V
Voltage Differences, BVDD to AGND ..................................... 0.3V to 7V
Input Current to Any Pin Except Supply ......................... 20mA to 20mA
Power Dissipation ....................................... See Dissipation Rating Table
Operating Virtual Junction Temperature Range, TJ ...... 40°C to 150°C
Operating Free-Air Temperature Range, TA .................. 40°C to 85°C
Storage Temperature Range, TSTG ............................. 65°C to 150°C
Lead Temperature 1.6mm (1/16 inch) from Case for 10s .............. 260°C
ADS8361 Features
The ADS8361 is a dual, 16-bit, 500kSPS, Analog-to-Digital (A/D) converter with four fully differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition.
Inputs to the sample-and-hold amplifiers are fully differential and are maintained differentially to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz, which is important in high-noise environments. The ADS8361 offers a high-speed, dual serial interface and control inputs to minimize software overhead. The output data for each channel is available as a 16-bit word. The ADS8361 is offered in SSOP-24 and QFN-32 (5x5) packages and is fully specified over the 40°C to +85°C operating range.
ADS8361 Typical Application
* MOTOR CONTROL
* MULTI-AXIS POSITIONING SYSTEMS
* 3-PHASE POWER CONTROL

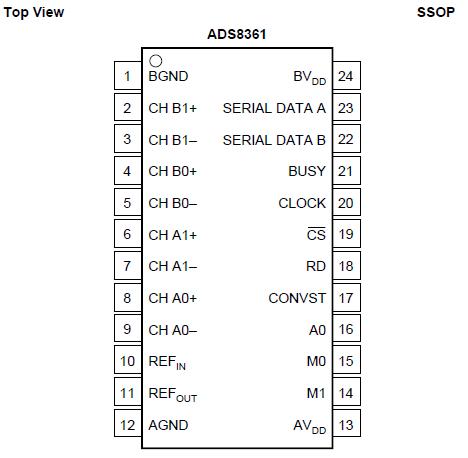

ADS8361 Connection Diagram
